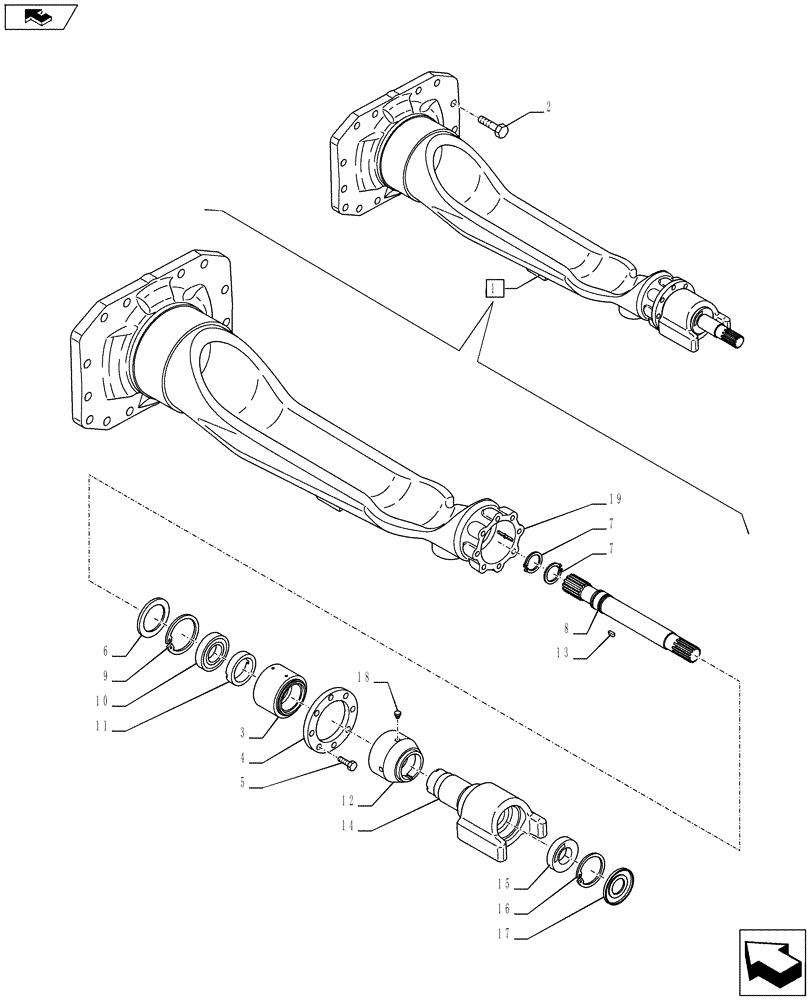

Запчасти Case IH PUMA 170 (25.100.02[01A]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS SKY HOOK - ARM AND SHAFT - BREAKDOWN - D7090 (VAR.720463-743963-743964) (25) - FRONT AXLE SYSTEM

1

87644385

AXLE,Arm Assembly, Suspension, Front

ASSY, Contains Ref. 2-19

1шт.

2

15984834

SCREW,Hex, M18 x 1.5 x 80mm, Cl 10.9

14шт.

3

82037905

BEARING,60mm ID x 95mm OD x 66mm W

1шт.

4

82037881

PLATE

1шт.

5

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

6

5198541

PLATE,62.2mm ID x 85mm OD x 1mm Thk

1шт.

7

11068876

SNAP RING,M40, Ext

2шт.

8

84479002

SHAFT

1шт.

9

11061976

SNAP RING,M80, Int

1шт.

10

28996550

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

11

82037880

NUT,M50 x 2.00mm

1шт.

12

87601957

BEARING HOUSING,67.00mm x 96.00mm x 74.00mm

1шт.

13

14723110

KEY,6mm x 6mm x 16mm

1шт.

14

87618799

HOLDER

1шт.

15

28996540

BALL BEARING,35mm ID x 72mm OD x 17mm W

35 x 72 x 17

1шт.

16

11061576

SNAP RING,M72, Int

1шт.

17

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

18

83908579

PLUG,M7.62

4шт.

19

87644384

ARM

1шт.
