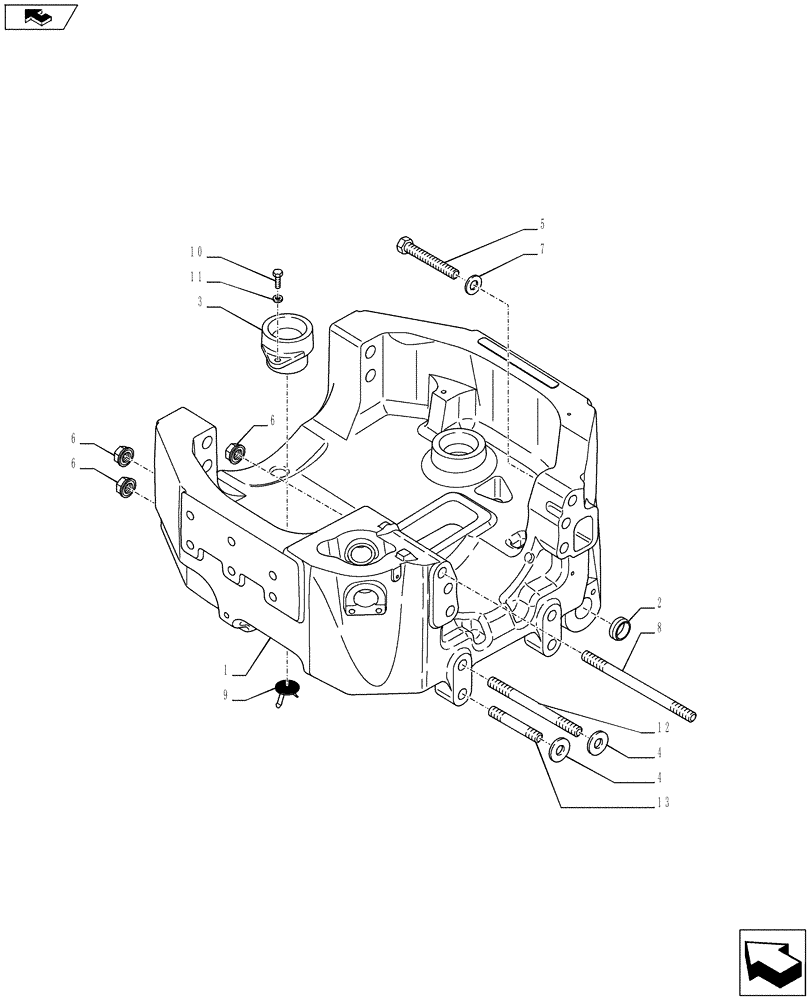

Запчасти Case IH PUMA 170 (25.100.0101[01]) - CLASS 4 4WD FRONT AXLE WITH ACTIVE SUSPENSION SKY HOOK - SUPPORT - C7090 (VAR.720463-728212) (25) - FRONT AXLE SYSTEM

1

84380307

FRAME

1шт.

2

82018767

SPACER,34mm ID x 44mm OD x 15.5mm L

1шт.

3

82030470

SUPPORT

1шт.

4

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

4

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

4

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

4

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

4

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

4

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

4

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

4

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

4

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

4

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

4

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

4

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

5

87316818

SCREW,M20 x 1.5 x 1.5mm

3шт.

6

82023393

LOCK NUT

M20 x 1.5

7шт.

7

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

3шт.

8

87333612

STUD,M20 x 1.5 x 295mm, Cl 12.9

M20 x 295

3шт.

9

82021866

GRILLE

1шт.

10

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

12

87333613

STUD,M20 x 1.5 x 240mm L

M20 x 240

2шт.

13

87333614

STUD

M20 x 130

2шт.
