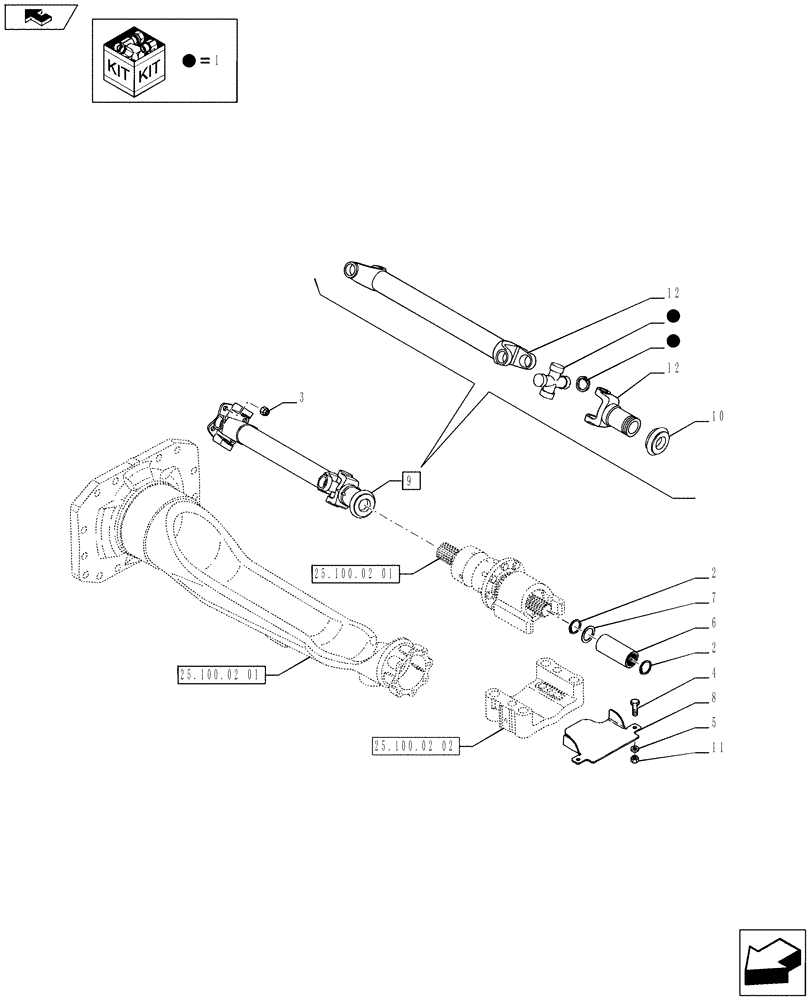

Запчасти Case IH PUMA 170 (23.101.0101[01]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSION - DRIVE SHAFT - C7090 (VAR.720463-728212) (23) - FOUR WHEEL DRIVE SYSTEM

1

87393885

SPIDER

Kit

2шт.

2

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

3

82936516

LOCK NUT,7/16"-20

4шт.

4

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

2шт.

5

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

6

47135384

SPLINED COUPLING,12T

1шт.

7

5118722

SHIM,34.6mm ID x 48mm OD x 1mm Thk

1.0MM

1шт.

7

5118723

SHIM,34.6mm ID x 48mm OD x 1.2mm Thk

1.2MM

1шт.

7

5118724

SHIM,34.60mm ID x 48.00mm OD x 1.50mm T

1.5MM

1шт.

7

5118725

SHIM,34.6mm ID x 48mm OD x 1.8mm Thk

1.8MM

1шт.

7

5118726

SHIM,34.60mm ID x 48.00mm OD x 2.00mm T

SHIM, 2.0 MM

1шт.

7

4994066

SHIM,34.60mm ID x 48.00mm OD x 2.20mm T

1шт.

7

4994067

SHIM,34.60mm ID x 48.00mm OD x 2.50mm T

1шт.

7

4994068

SHIM,34.60mm ID x 48.00mm OD x 2.80mm T

1шт.

7

4994069

SHIM,34.60mm ID x 48.00mm OD x 3.00mm T

1шт.

7

4994070

SHIM,34.60mm ID x 48.00mm OD x 3.30mm T

1шт.

7

4994071

SHIM,34.60mm ID x 48.00mm OD x 3.70mm T

1шт.

7

4994072

SHIM,34.60mm ID x 48.00mm OD x 4.00mm T

1шт.

7

4994073

SHIM,34.60mm ID x 48.00mm OD x 4.30mm T

1шт.

8

82037903

GUARD

1шт.

9

87664855

DRIVE SHAFT

ASSY, Contains Ref. 10,12

1шт.

10

84153203

BELLOWS

1шт.

11

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

12

NSS

NOT SOLD SEPARAT

1шт.
