Запчасти Case IH PUMA 170 (21.102.01[01]) - HYDRAULIC TRASMISSION CONTROL - PIPES AND FITTING (21) - TRANSMISSION

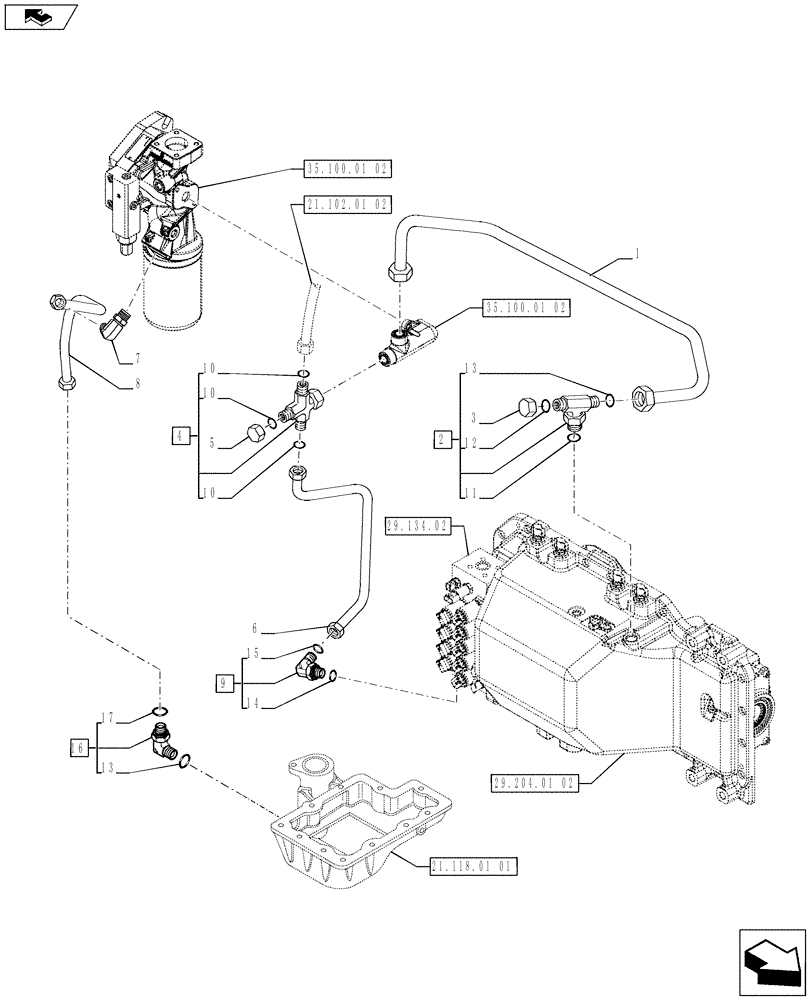

Схема запчастей Case IH PUMA 170 - (21.102.01[01]) - HYDRAULIC TRASMISSION CONTROL - PIPES AND FITTING (21) - TRANSMISSION
13
17
14
12
7
8
21.118.01 01
29.204.01 02
16
10
35.100.01 02
home
29.134.02
35.100.01 02
21.102.01 02
2
10
11
9
1
5
13
3
15
6
10
4

Артикул

Название

Примечание

Количество

1

84150122

HYD TUBE,20 mm OD

BOOST

1шт.

2

87687885

HYD CONNECTOR

Contains Ref. 11-13

1шт.

3

9625546

CAP,11/16" - 16 ORFS

1шт.

4

87608130

HYD CONNECTOR

Contains Ref. 10

1шт.

5

9840576

CAP,1" - 14 ORFS

1шт.

6

87718486

HYD TUBE

To Solenoid Valve Manifold

1шт.

7

87722754

HYD CONNECTOR,M27 x 2

1шт.

8

87722757

HYD TUBE

By Pass

1шт.

9

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Contains Ref. 14,15

1шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

12

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

13

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

14

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

Contains Ref. 13,17

1шт.

17

14438185

O-RING,24mm ID x 3mm

1шт.

Выбрано товаров: 17
