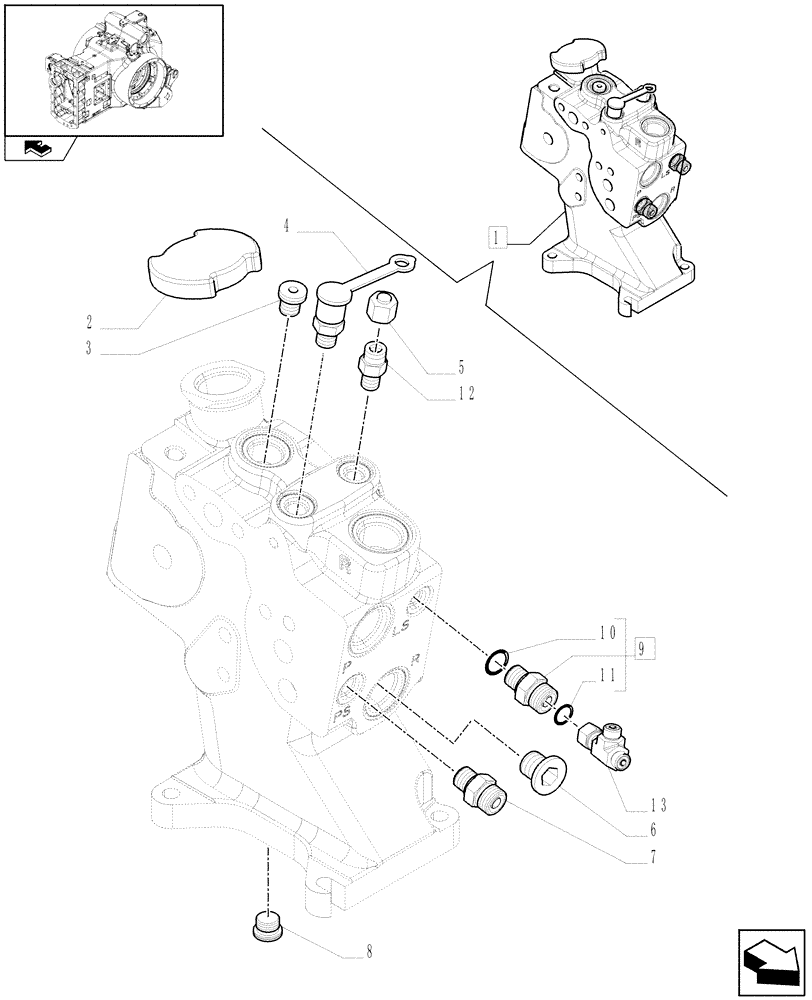

Запчасти Case IH PUMA 165 (1.82.7/ C) - REMOTE CONTROL VALVES BODY - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

87555868

MANIFOLD VALVE

ASSY

1шт.

2

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

3

221579A1

PLUG,M22 x 1.5 ORB

1шт.

4

178889A1

DIAGNOSTIC COUPLER

1шт.

5

701-917

CAP,Hex, 9/16" - 18 Female ORFS

1шт.

6

221580A1

PLUG,M27 x 2 ORB

1шт.

7

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

1шт.

8

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

1шт.

9

84174239

ORIFICE,Hex, M12 x 1.5 x 28.5mm L

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

87551023

CHECK VALVE

1шт.

13

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.
