(1.82.7/05A) - ELECTRONIC MID MOUNTED VALVES 2 SLICE - BREAKDOWN

Запчасти Case IH PUMA 165 (1.82.7/05A) - ELECTRONIC MID MOUNTED VALVES 2 SLICE - BREAKDOWN (07) - HYDRAULIC SYSTEM

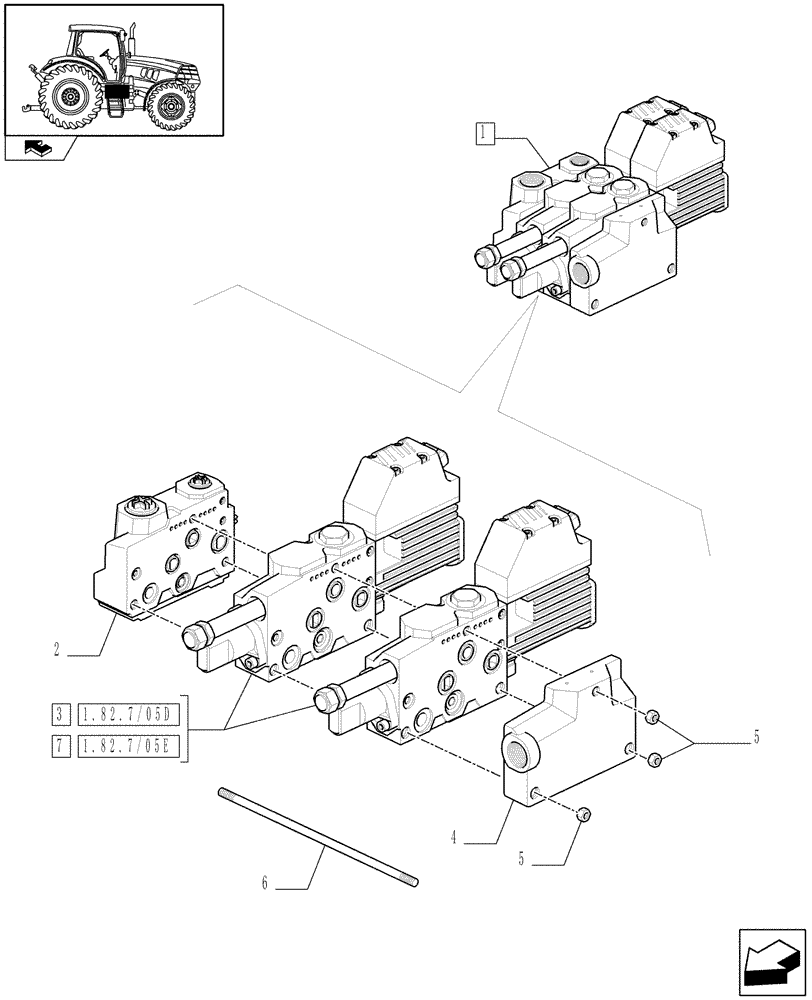

Схема запчастей Case IH PUMA 165 - (1.82.7/05A) - ELECTRONIC MID MOUNTED VALVES 2 SLICE - BREAKDOWN (07) - HYDRAULIC SYSTEM
2
1
5
1.82.7/05e
5
3
7
6
4
home
1.82.7/05d
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82038052

CONTROL VALVE

, Serial Range: -C6544

1шт.

1

84214464

CONTROL VALVE

, Start Serial: D6544

1шт.

1

84214464R

REMAN-HYD VALVE

Reman Valve Assy

1шт.

1

84214464C

CORE-VALVE HYD

Core return Number

1шт.

2

87744557

MANIFOLD

1шт.

3

84151263

ELECTRO-VALVE

, Serial Range: -C6544

2шт.

3

84151263R

REMAN-HYD VALVE

Reman for New PN 84151263

2шт.

3

84151263C

CORE-VALVE HYD

Return Number

2шт.

84214463R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225 all (Serial Range: -C6544) (11/08-), Reman For New P/N 84151263

2шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

4

87750999

END PLATE

HYDRAULIC VALVE

1шт.

5

5195169

NUT,M8

3шт.

6

87751799

TRUSS ROD

3шт.

7

84214463

ELECTRO-VALVE

, Start Serial: D6544

2шт.

84214463R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225 all (Start Serial: D6544) (11/08-)

2шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

84214463C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, VALVE, SINGLE SLICE MMV - for N.A. Only

1шт.
