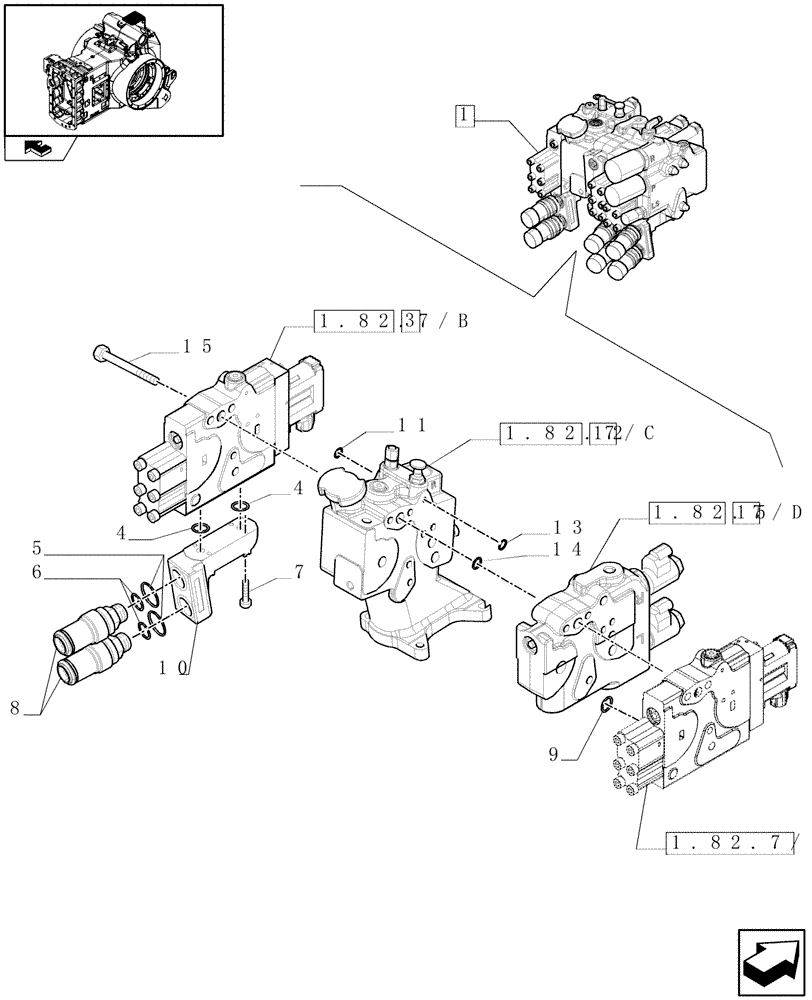

Запчасти Case IH PUMA 165 (1.82.7/03A[01]) - REAR ELECTRONIC REMOTE CONTROL VALVES WITH 3 ELEMENTS AND POWER BEYOND - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

87582247

CONTROL VALVE

1шт.

2

87331245

VALVE SECTION

Hitch, ASSY

1шт.

87331245R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195,PUMA 210, PUMA 225, ALL CVT (11/08-)

1шт.

87331245C

CORE-VALVE HYD

Return Number

1шт.

2

47434177R

REMAN-HYD VALVE

Reman For New P/N 87331245, Hitch, Assy

1шт.

2

47434177C

CORE-VALVE HYD

Return Part Number

1шт.

3

87330318

HYD VALVE SECTION

Left, ASSY

1шт.

87330318R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225 all CVT (11/08-)

1шт.

87330318C

CORE-VALVE HYD

Return Number

1шт.

3

47434172R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225, All TRACTOR - CVT (11/08-), Reman for New PN 87330318

1шт.

3

47434172C

CORE-VALVE HYD

Return Number

1шт.

4

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

6шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

6

87382012

SEAL KIT

4шт.

7

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

4шт.

8

87381944

COUPLING, QUICK, FEM

Incl.5, 6

4шт.

9

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

2шт.

10

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, Incl.8

1шт.

11

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

3шт.

12

87555868

MANIFOLD VALVE

ASSY

1шт.

13

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

12шт.

14

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

16шт.

15

87687044

SEAL KIT

M12 x 1.75

2шт.

15

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

3шт.
