(1.82.7/02A[02]) - REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS - BREAKDOWN

Запчасти Case IH PUMA 165 (1.82.7/02A[02]) - REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS - BREAKDOWN (07) - HYDRAULIC SYSTEM

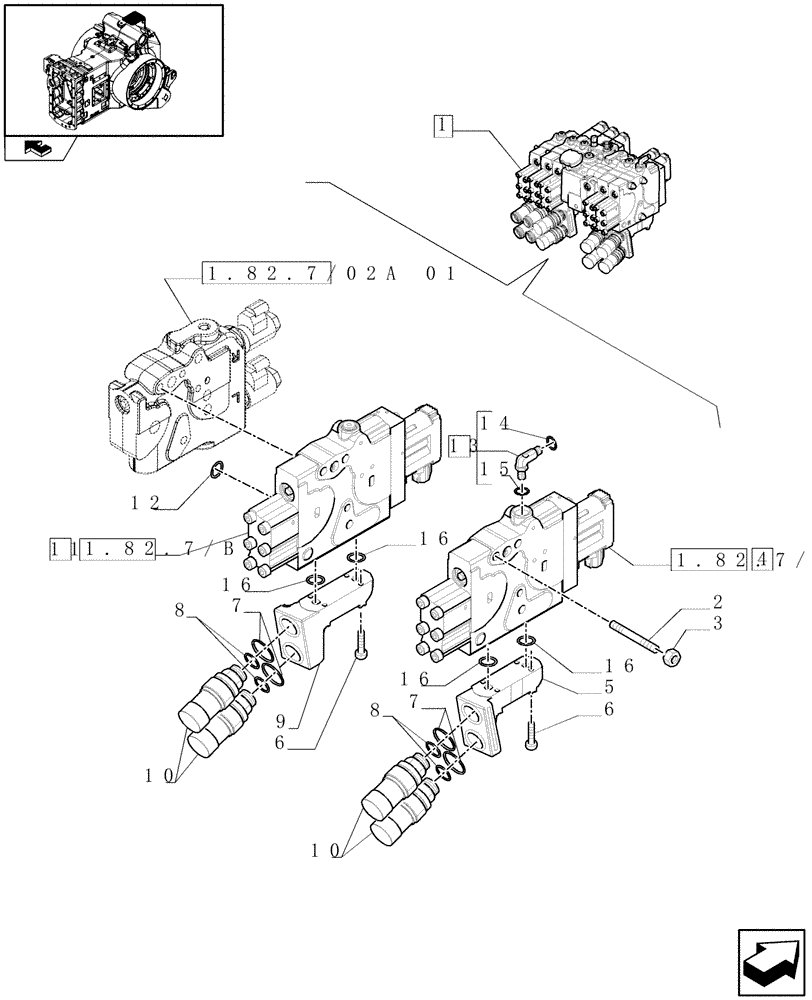

Схема запчастей Case IH PUMA 165 - (1.82.7/02A[02]) - REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS - BREAKDOWN (07) - HYDRAULIC SYSTEM
12
8
5
7
15
14
home
1.82.7/02a 01
1.82.7/b
1.82.7/b
16
1
4
3
8
6
11
10
16
10
9
6
7
2
13
16
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87354270

CONTROL VALVE

1шт.

2

87604618

STUD,M12 x 1.75 x 185mm

M12 x 1.75

3шт.

3

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

4

87330385

HYD VALVE SECTION

Right,ASSY

1шт.

4

87330385R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225 All CVT All(11/08)

1шт.

4

87330385C

CORE-VALVE HYD

Return Number

1шт.

5

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, ASSY, Incl.10

1шт.

6

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

8шт.

7

87382012

SEAL KIT

4шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

9

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, ASSY, Incl.10

1шт.

10

87381944

COUPLING, QUICK, FEM

ASSY, Incl.7, 8

4шт.

11

87325955

HYD VALVE SECTION

Main, ASSY

1шт.

11

87325955R

REMAN-HYD VALVE

PUMA 165,PUMA 180,PUMA 195,PUMA 210,PUMA 225,All CVT (11/08-)

1шт.

11

87325955C

CORE-VALVE HYD

Return Number

1шт.

12

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

4шт.

13

84127666

ELBOW

1шт.

14

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

15

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

16

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

4шт.
