(1.82.7/02) - (VAR.252) REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS

Запчасти Case IH PUMA 165 (1.82.7/02) - (VAR.252) REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS (07) - HYDRAULIC SYSTEM

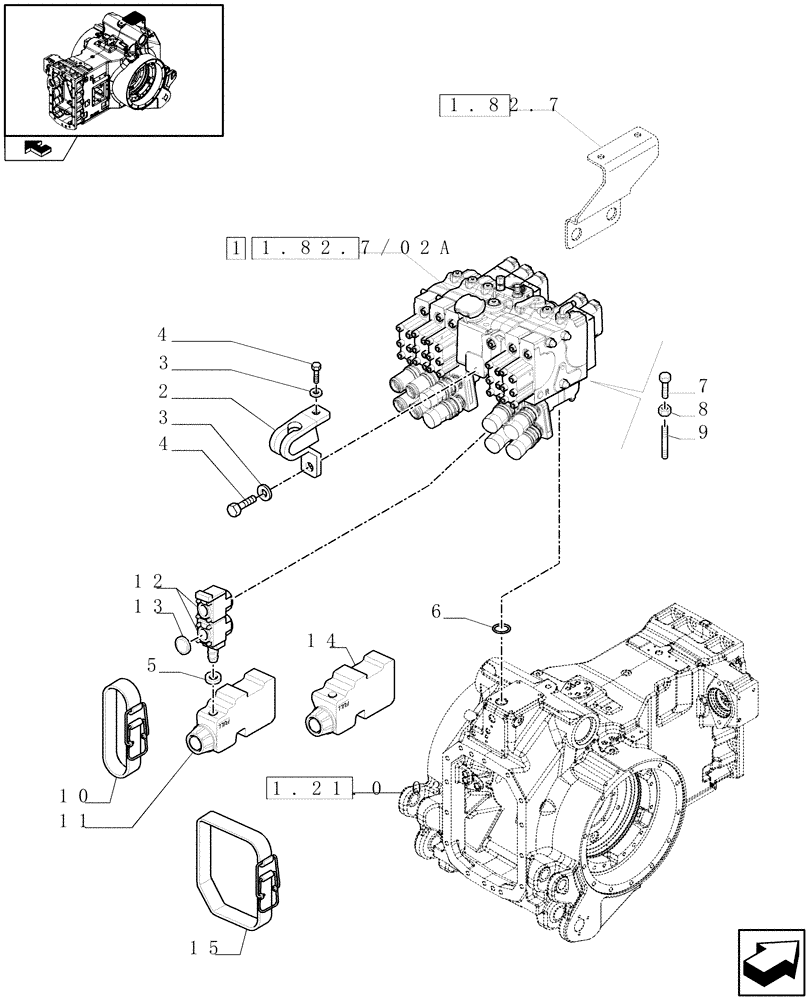

Схема запчастей Case IH PUMA 165 - (1.82.7/02) - (VAR.252) REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS (07) - HYDRAULIC SYSTEM
3
5
11
7
4
15
3
4
1.82.7
1.21.0 03
1.82.7/02a
home
12
2
10
9
14
13
8
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87354270

CONTROL VALVE

ASSY

1шт.

2

87352315

BRACKET

1шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

4

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

5

82029356

SEAL,20.00mm OD x 3.00mm

5шт.

6

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

7

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

12164711

NUT,M10 x 1.25, Cl 8

2шт.

9

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

M10 x 1.25 x 30

2шт.

10

82032061

CLIP

5шт.

11

47922580

BOTTLE

3шт.

12

82033220

DUST CAP

5шт.

13

82029895

DISC,20mm D, Black

Black

10шт.

14

84175564

RESERVOIR, HYDRAULIC

1шт.

15

84175565

CLAMP

1шт.
