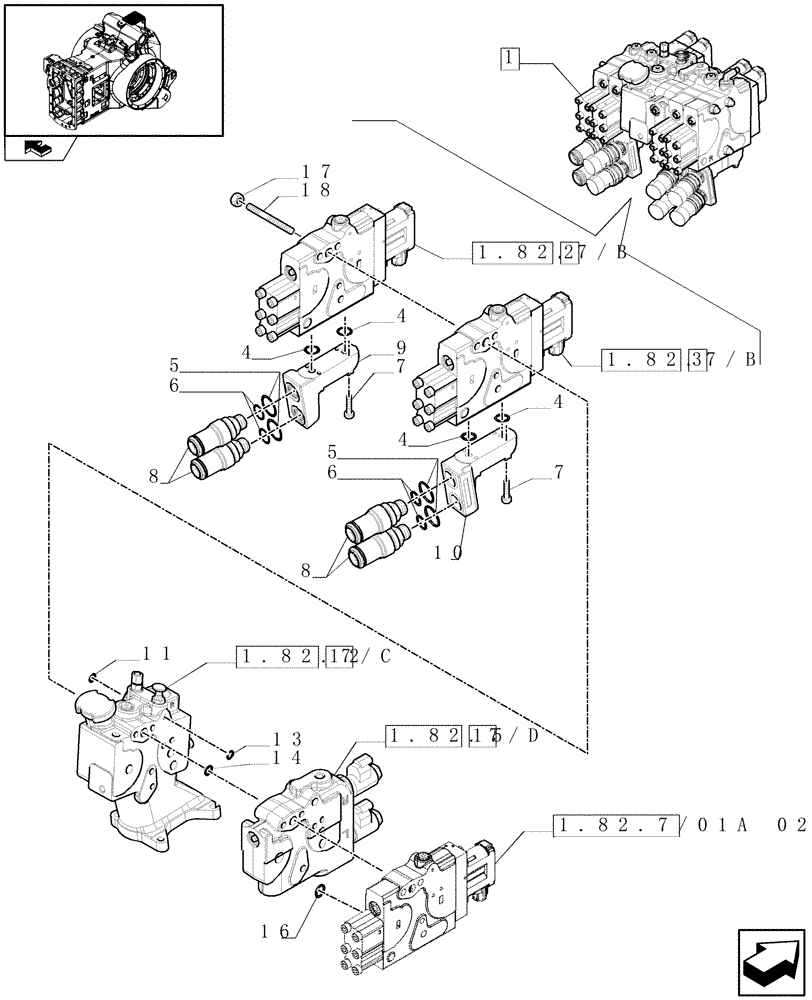

Запчасти Case IH PUMA 165 (1.82.7/01A[01]) - REAR ELECTRONIC REMOTE CONTROL VALVES WITH 4 ELEMENTS - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

87582246

CONTROL VALVE

1шт.

2

87330318

HYD VALVE SECTION

Left, ASSY

1шт.

2

87330318R

REMAN-HYD VALVE

Left, ASSY

1шт.

2

87330318C

CORE-VALVE HYD

Return Number

1шт.

3

87325955

HYD VALVE SECTION

Aux, ASSY

1шт.

3

87325955R

REMAN-HYD VALVE

Aux, ASSY

1шт.

3

87325955C

CORE-VALVE HYD

Return Number

1шт.

4

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

4шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

6

87382012

SEAL KIT

4шт.

7

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

8шт.

8

87381944

COUPLING, QUICK, FEM

Incl.5, 6

4шт.

9

87596458

HYDRAULIC MANIFOLD

Incl.8

1шт.

10

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, Incl.8

1шт.

11

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

3шт.

12

87555868

MANIFOLD VALVE

ASSY

1шт.

13

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

12шт.

14

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

16шт.

15

87331245

VALVE SECTION

Hitch, ASSY

1шт.

15

47434177R

REMAN-HYD VALVE

Hitch, ASSY

1шт.

15

47434177C

CORE-VALVE HYD

Return Part Number

1шт.

16

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

2шт.

17

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

18

87604618

STUD,M12 x 1.75 x 185mm

M12 x 1.75

1шт.
