(1.81.9/ F) - FRONT HPL FOR REAR REMOTES LESS PTO, LESS AUX. COUPLERS - LIFTER

Запчасти Case IH PUMA 165 (1.81.9/ F) - FRONT HPL FOR REAR REMOTES LESS PTO, LESS AUX. COUPLERS - LIFTER (07) - HYDRAULIC SYSTEM

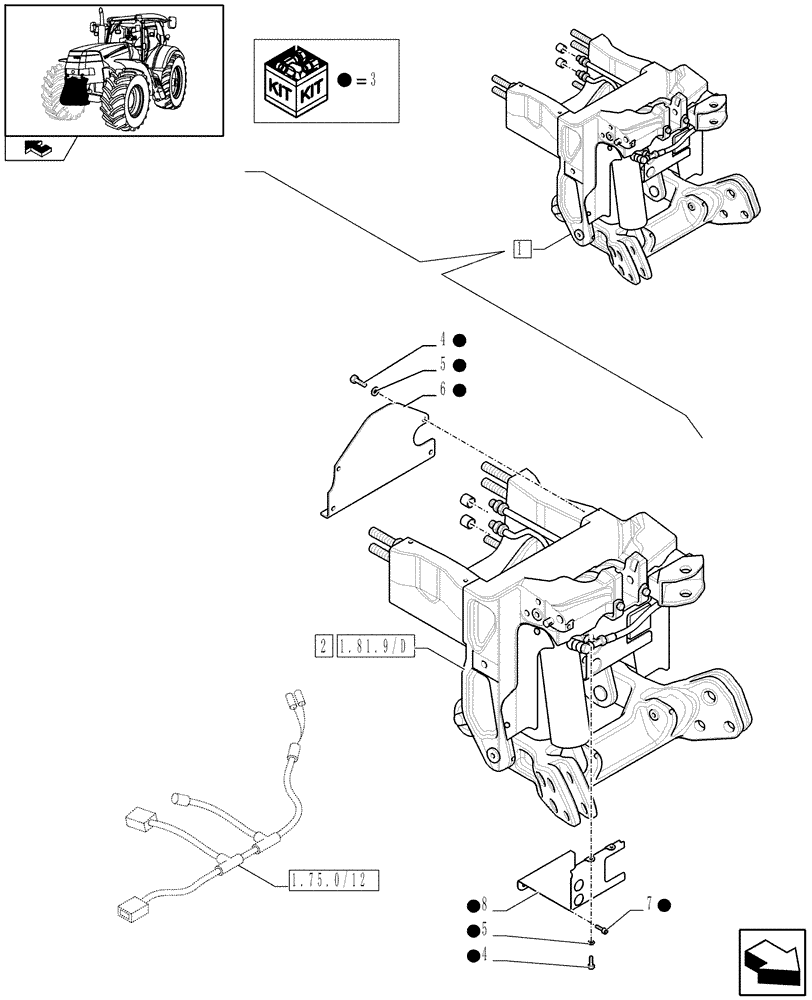

Схема запчастей Case IH PUMA 165 - (1.81.9/ F) - FRONT HPL FOR REAR REMOTES LESS PTO, LESS AUX. COUPLERS - LIFTER (07) - HYDRAULIC SYSTEM
12
6
1.81.9/d
home
1.75.0/12
5
1
7
8
12
12
12
3
5
2
12
12
4
12
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

1шт.

2

87476101

HITCH

1шт.

3

84177635

COVER

1шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

87688327

COVER

1шт.

7

87706765

HEX SOC SCREW,M14 x 30mm, Cl 8.8

2шт.

8

87676926

COVER

1шт.

9

84364844

WIRE HARNESS

1шт.
