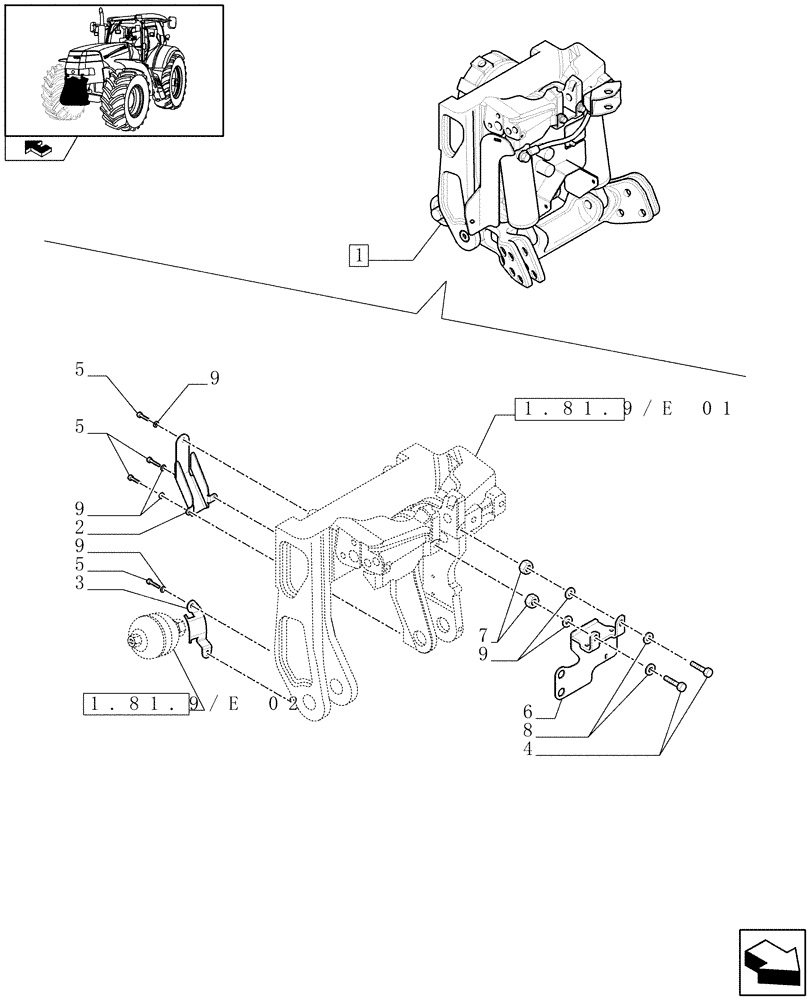

Запчасти Case IH PUMA 165 (1.81.9/ E[03]) - LIFTER - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

87476103

HITCH

1шт.

2

87644590

COVER

1шт.

3

87645449

BRACKET

1шт.

4

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

5шт.

6

87684033

SUPPORT

1шт.

7

9706690

NUT,M8 x 1.25, Cl 8

2шт.

8

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

7шт.
