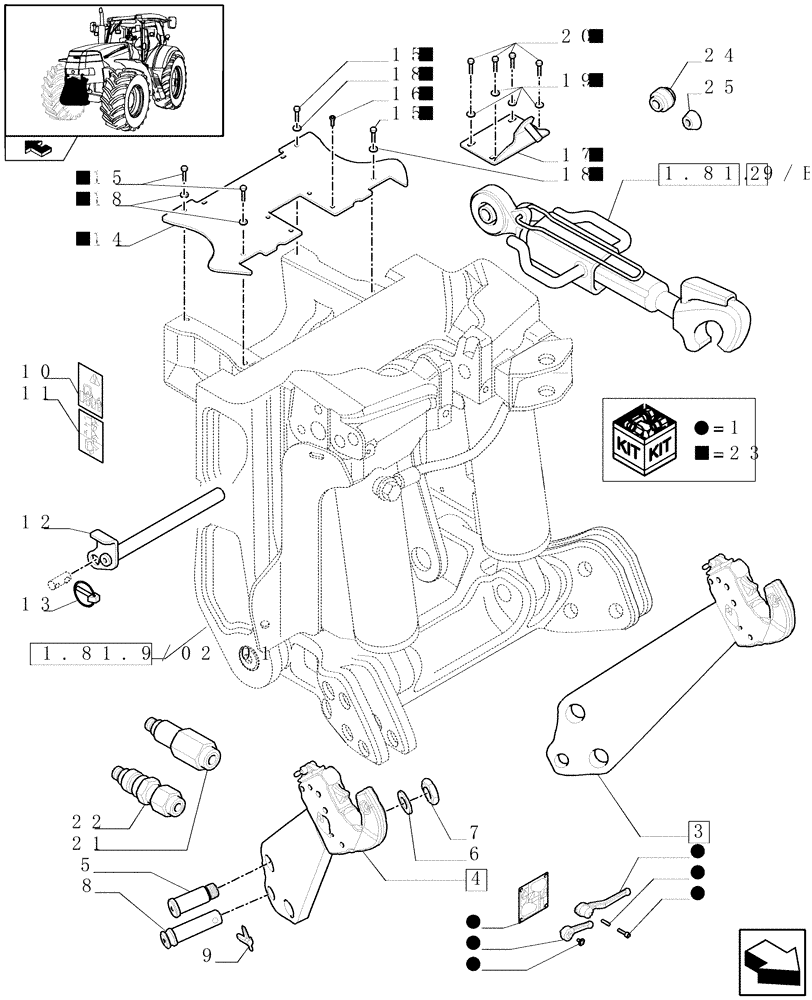

Запчасти Case IH PUMA 165 (1.81.9/02[04]) - (VAR.090) FRONT HPL FOR MID MOUNT REMOTES LESS PTO, WITH AUX. COUPLERS - LINK AND ARMS - C6726 (07) - HYDRAULIC SYSTEM

1

87609320

REPAIR KIT

KIT

1шт.

2

47133180

TOP LINK

ASSY

1шт.

3

87399996

LIFT ARM

LH, Incl. 25

1шт.

4

87399998

LIFT ARM

RH, Incl. 25

1шт.

5

87609324

PIN

2шт.

6

87515200

WASHER,31mm ID x 50mm OD x 2mm Thk

2шт.

7

87515202

NUT

2шт.

8

87515204

PIN

2шт.

9

87515201

LINCH PIN

2шт.

10

87607322

DECAL

1шт.

11

87607323

DECAL

1шт.

12

87515206

PIN

1шт.

13

87399999

CIRCLIP

1шт.

14

87687708

END PLATE

1шт.

15

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

16

87688422

NUT

4шт.

17

87687719

LATCH

1шт.

18

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

19

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

21

87608924

PUSH-PULL COUPLING

1шт.

22

87608926

PUSH-PULL COUPLING

1шт.

23

87609326

PLATE

KIT

1шт.

24

5172480

BALL,25.4mm ID x 50mm OD

1шт.

25

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

2шт.
