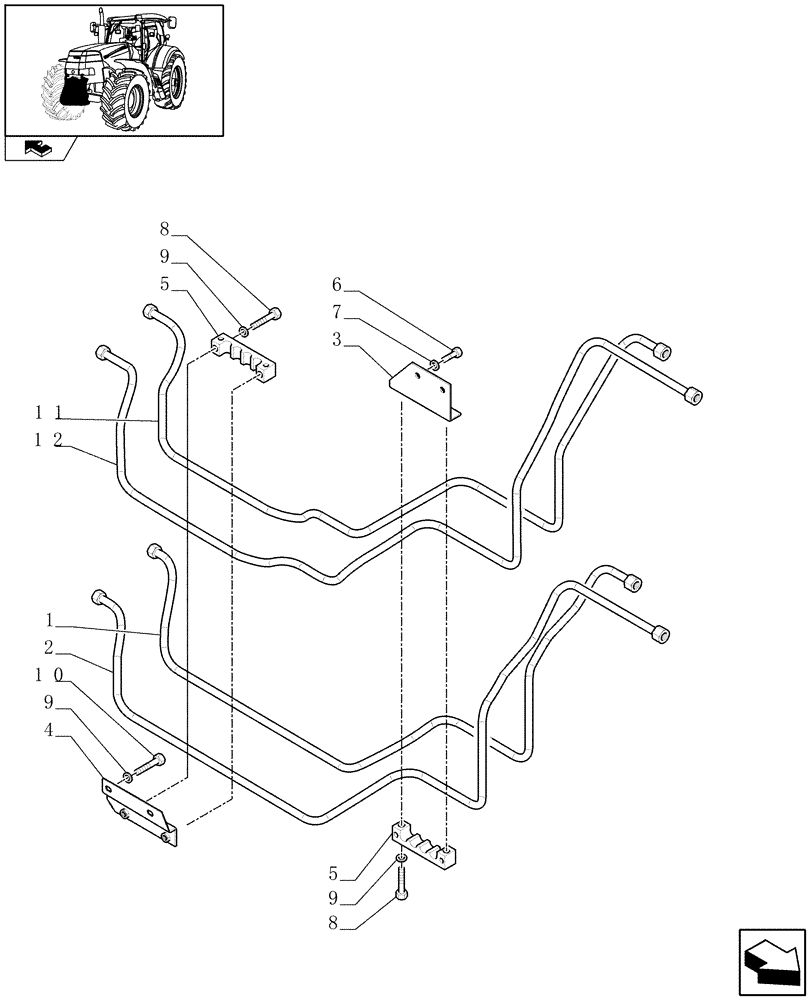

Запчасти Case IH PUMA 165 (1.81.9/02[03A]) - (VAR.090) FRONT HPL FOR MID MOUNT REMOTES LESS PTO, WITH AUX. COUPLERS - PIPES AND BRACKETS - D6726 (07) - HYDRAULIC SYSTEM

1

87713695

HYD TUBE,16 mm OD x 473, 208 mm L

1шт.

Aux. Lower

1шт.

2

87713693

HYD TUBE,16 mm OD x 363 mm L

1шт.

Cyl. Lower

1шт.

3

87346861

BRACKET

1шт.

4

87346863

BRACKET

1шт.

5

87579043

CLAMP,4 Hoses

2шт.

6

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

8

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

4шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

87713696

HYD TUBE,16 mm OD x 1198, 274 mm L

1шт.

Aux. Raise

1шт.

12

87713694

HYD TUBE,16 mm OD x 1133 mm L

1шт.

Cyl. Raise

1шт.
