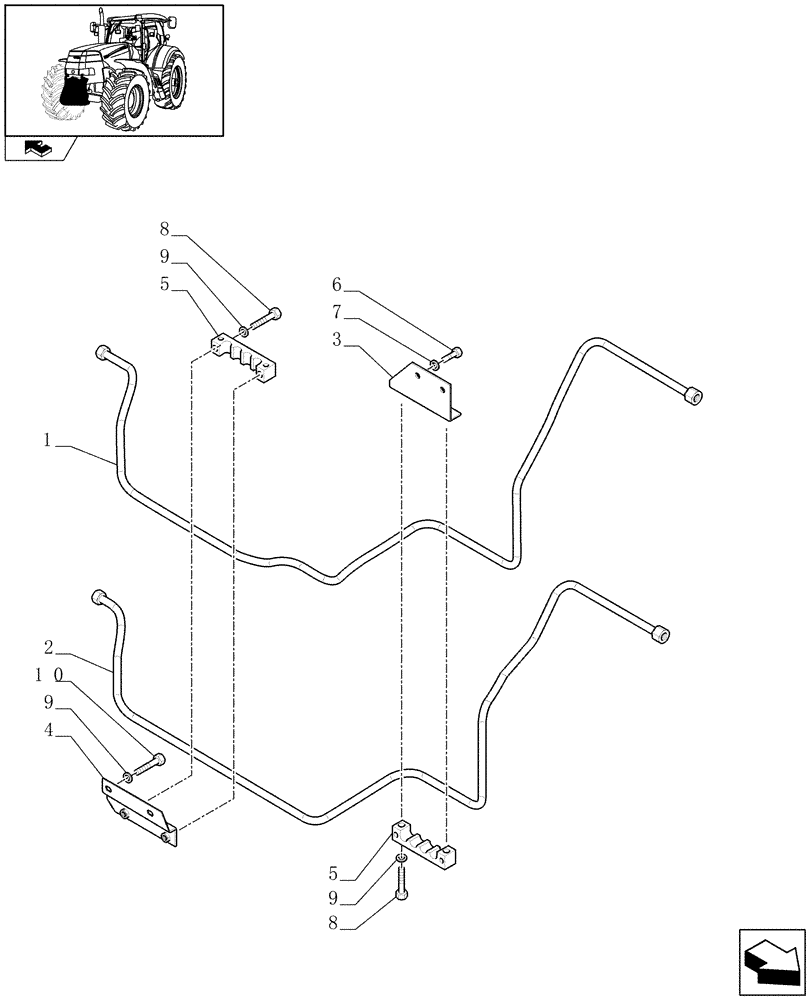

Запчасти Case IH PUMA 165 (1.81.9[04A]) - (VAR.088) FRONT HPL FOR REAR REMOTES LESS PTO, LESS AUX. COUPLERS - PIPES AND BRACKETS - D6726 (07) - HYDRAULIC SYSTEM

1

87517998

PIPE

1шт.

Cyl. Raise

1шт.

2

87736287

HYD TUBE,16 mm OD x 419 mm L

1шт.

Cyl. Lower

1шт.

3

87346861

BRACKET

1шт.

4

87346863

BRACKET

1шт.

5

87579043

CLAMP,4 Hoses

2шт.

6

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

8

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

4шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
