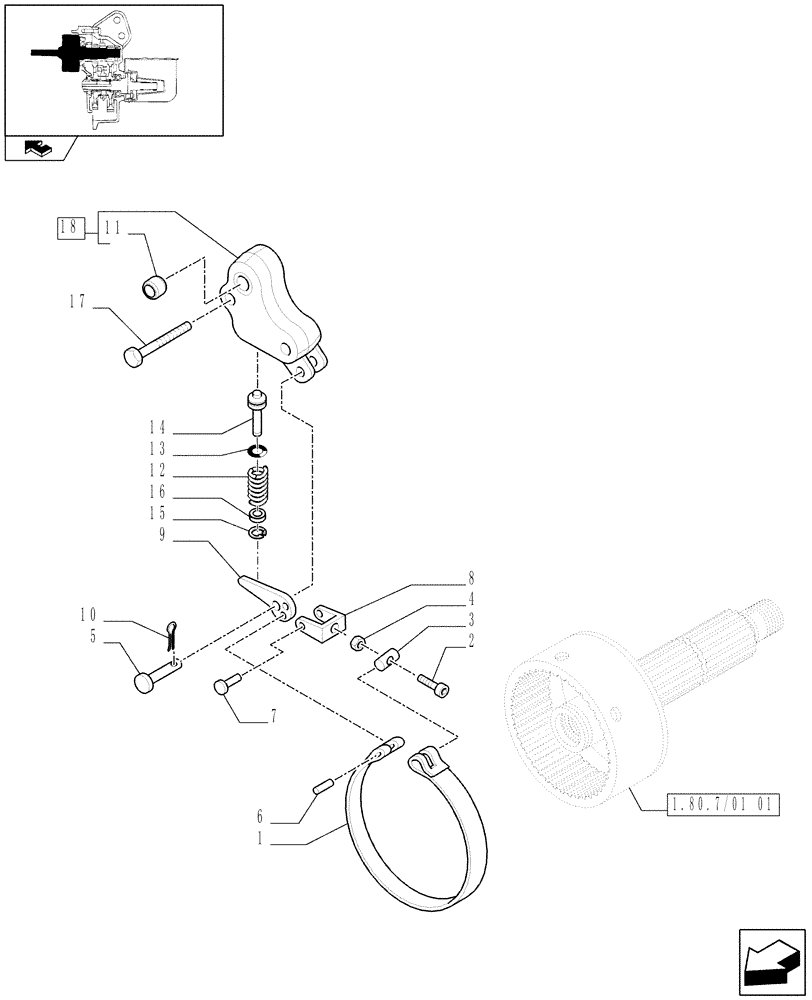

Запчасти Case IH PUMA 165 (1.80.7/01[02]) - (VAR.349) 4 SPEED SHIFTABLE PTO ELECTRIC CONTROL 540/540E/1000/1000E - PTO, CLUTCH - D6479 (07) - HYDRAULIC SYSTEM

1

87391136

BRAKE BAND,23mm W x 1.0mm Thk

1шт.

2

87016469

HEX SOC SCREW,M5 x 25mm, Cl 8.8

w/Washer

1шт.

3

87518195

PIN,11.05mm OD x 23mm L

1шт.

4

13831801

FLANGE NUT,Flanged, M5, 0.80 Pitch, 4.30mm High

1шт.

5

84154647

PIN,6.2mm OD x 42.4mm L

1шт.

6

10335010

DOWEL,M5 x 22

1шт.

7

10337610

DOWEL,M8 x 22

1шт.

8

87518169

BRACKET

1шт.

9

87528159

LEVER

1шт.

10

81454228

COTTER PIN,1/16" x .50" L

1шт.

11

5168157

BUSHING,8.5mm ID x 10.7mm OD x 5.5mm L

2шт.

12

81866141

SPRING,Compression, 0.66"OD x 1.35" L

1шт.

13

83416164

O-RING,1.78mm Thk x 14mm ID, 70 Duro

.551" ID x .070" Thk

1шт.

14

83999379

PISTON

1шт.

15

81871263

SNAP RING,3/4", Int

1шт.

16

47133069

GUIDE

1шт.

17

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

18

87518135

HOUSING

1шт.
