(1.80.1[05]) - POWER TAKE-OFF 1000E/1000 RPM - SHIELDS

Запчасти Case IH PUMA 165 (1.80.1[05]) - POWER TAKE-OFF 1000E/1000 RPM - SHIELDS (07) - HYDRAULIC SYSTEM

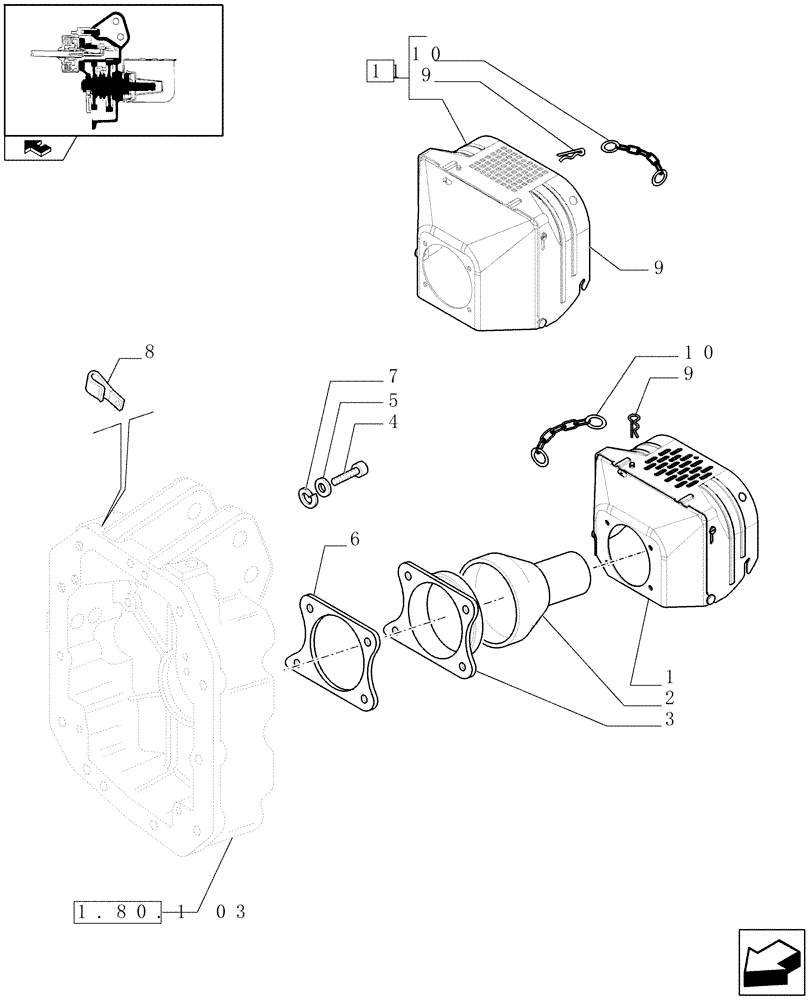

Схема запчастей Case IH PUMA 165 - (1.80.1[05]) - POWER TAKE-OFF 1000E/1000 RPM - SHIELDS (07) - HYDRAULIC SYSTEM
9
1
6
10
7
8
9
10
5
1.80.1 03
home
4
9
2
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82024034

GUARD

Incl.9,10

1шт.

2

47125899

COVER,109mm L

1шт.

3

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

4

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

47131825

GUARD

2шт.

7

10569374

LOCK WASHER,M8

4шт.

8

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

9

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

10

82024033

CHAIN

1шт.

11

82032577

GUARD

1шт.

With Flip - Up Guard for NAR, VAR.599

1шт.

With USA Completition Package, VAR.100

1шт.
