Запчасти Case IH PUMA 165 (1.75.3/01[01]) - (VAR.752) ELECTRICALLY CONTROLLED BATTERY ISOLATOR (06) - ELECTRICAL SYSTEMS

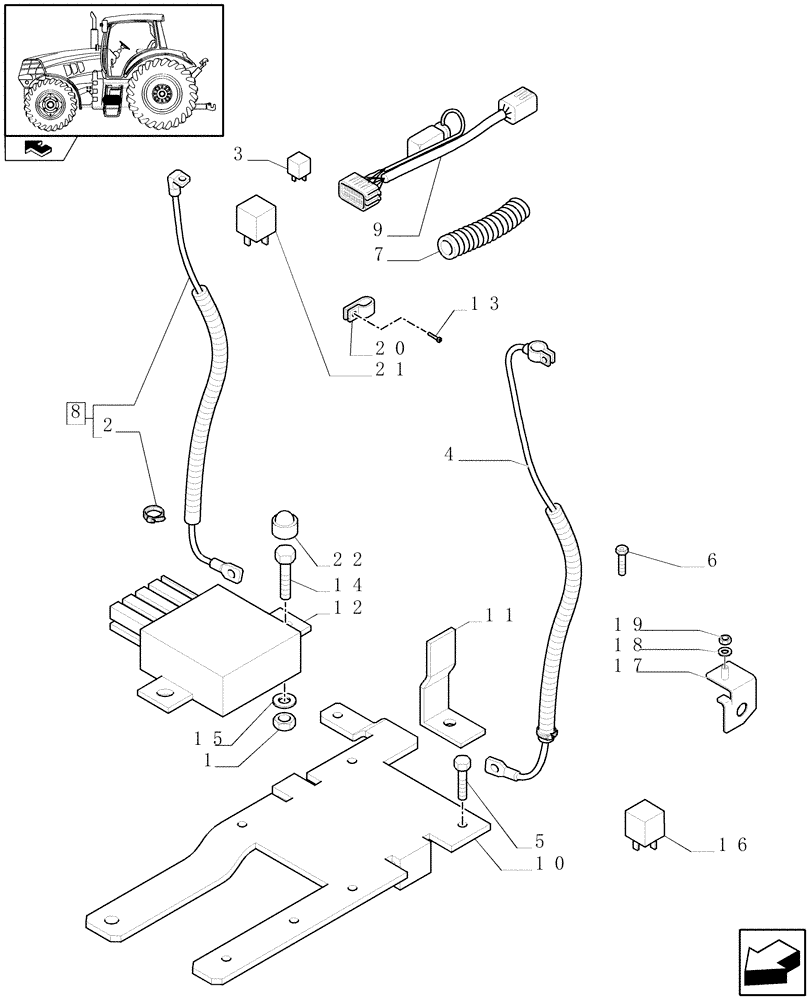

Схема запчастей Case IH PUMA 165 - (1.75.3/01[01]) - (VAR.752) ELECTRICALLY CONTROLLED BATTERY ISOLATOR (06) - ELECTRICAL SYSTEMS
19
12
15
21
1
18
home
2
7
10
11
9
8
3
13
22
17
14
5
20
4
6
16

Артикул

Название

Примечание

Количество

1

86528579

NUT,M8 x 1.25

2шт.

2

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

3шт.

3

10395890

FUSE,5A, Mini, Beige

1шт.

4

87576880

ELECTRIC CABLE

1шт.

Battery to Isolator

1шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

6шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

7

87668898

FLEXIBLE SHEATH

L=400mm

1шт.

8

87305175

TERMINAL

, Serial Range: -C6725

1шт.

Starter to Isolator

1шт.

8

84249328

ELECTRIC CABLE

, Start Serial: D6725

1шт.

Starter to Isolator

1шт.

9

87309858

WIRE HARNESS

Radio Fly Lead

1шт.

10

87392817

BRACKET

1шт.

11

87392819

BRACKET

1шт.

12

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch

1шт.

13

13272117

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

14

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

16

87691156

RELAY

4 min delay

1шт.

17

87395437

BRACKET

1шт.

18

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

19

15896211

NUT,M6, Cl 8

1шт.

20

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

2шт.

20

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

21

82023238

RELAY,12V, 20A

1шт.

22

87516431

CUP,for M8 Nut

4шт.

Выбрано товаров: 28
