(1.68.6[10]) - (VAR.171-385) PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING

Запчасти Case IH PUMA 165 (1.68.6[10]) - (VAR.171-385) PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING (05) - REAR AXLE

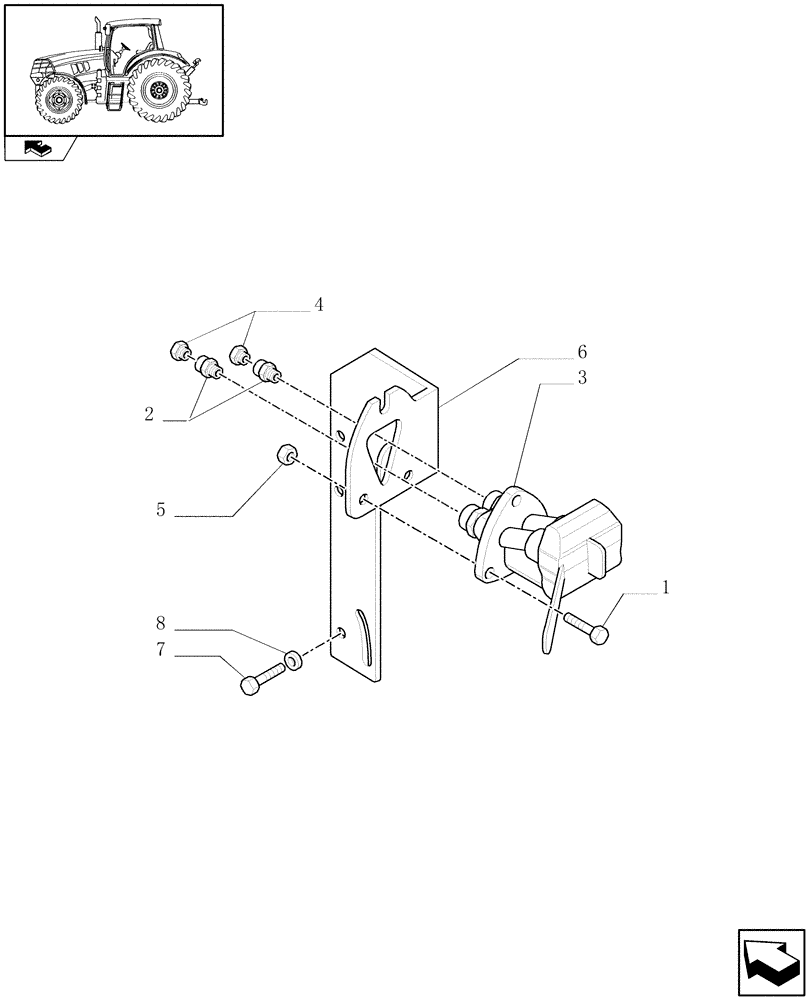

Схема запчастей Case IH PUMA 165 - (1.68.6[10]) - (VAR.171-385) PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET AND COUPLING (05) - REAR AXLE
4
6
1
3
home
8
7
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

2

87679177

ADAPTER

2шт.

3

87692947

PUSH-PULL COUPLING

1шт.

4

82034157

ADAPTER

2шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

6

87666026

BRACKET

1шт.

7

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.
