(1.68.6[02]) - (VAR.169-170-171-178-385-385/1) PNEUMATIC TRAILER BRAKE - PULLEYS AND BELT

Запчасти Case IH PUMA 165 (1.68.6[02]) - (VAR.169-170-171-178-385-385/1) PNEUMATIC TRAILER BRAKE - PULLEYS AND BELT (05) - REAR AXLE

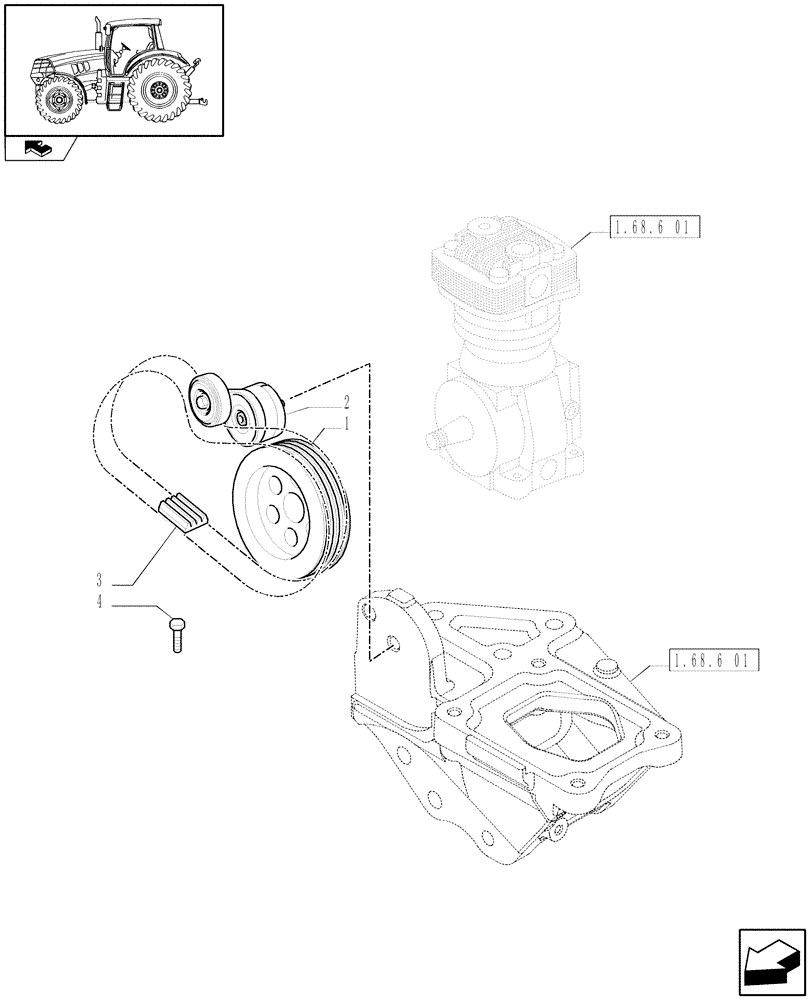

Схема запчастей Case IH PUMA 165 - (1.68.6[02]) - (VAR.169-170-171-178-385-385/1) PNEUMATIC TRAILER BRAKE - PULLEYS AND BELT (05) - REAR AXLE
4
1
home
1.68.6 01
1.68.6 01
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82036658

PULLEY

M26 x 1.5

1шт.

2

87300104

BELT TENSIONER

1шт.

3

87300105

V-BELT,14.04 mm W x 968.00 mm L

1шт.

4

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

M10 x 1.5 x 35

2шт.

Выбрано товаров: 4
