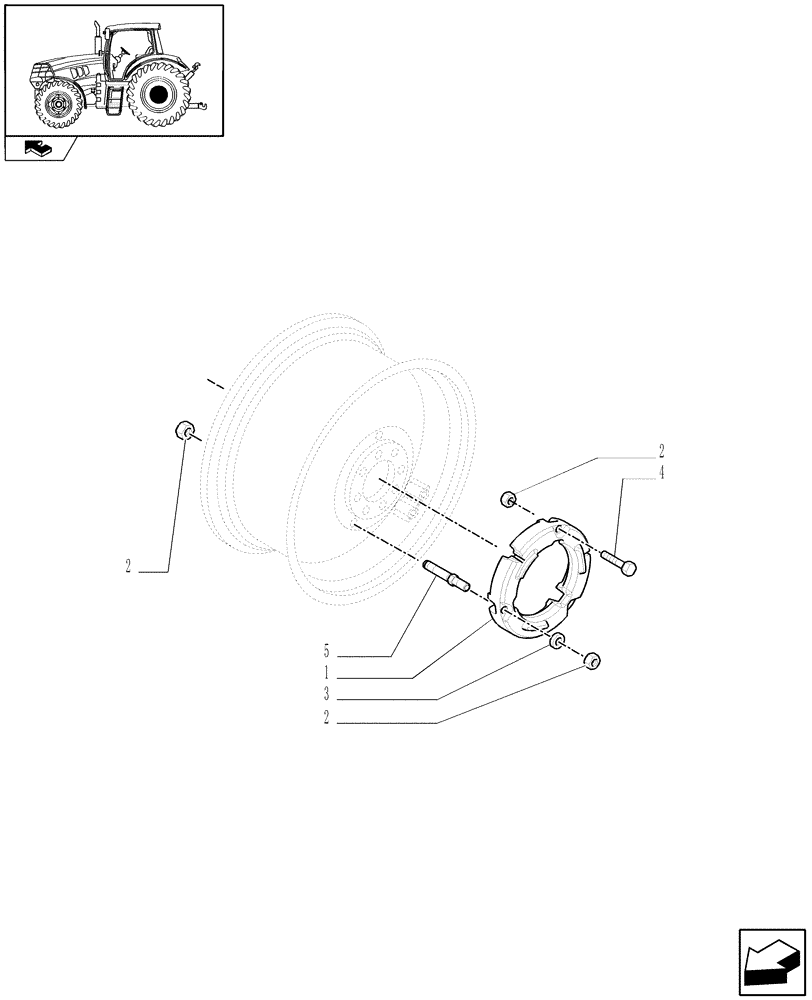

Запчасти Case IH PUMA 165 (1.49.7/01) - (VAR.028-029) REAR BALLAST - 682 AND 1000 KG (05) - REAR AXLE

1

405828A1

WHEEL WEIGHT

125 KG-270 LBS)

2шт.

With 2 x 90 kg rear ballast adaptation rings mounted on outside of rear wheels with 2 x 225kg weights, VAR.028

1шт.

1

87713987

WHEEL WEIGHT,250Kg

(250 KG-550 LBS)

1шт.

Q.ty=2 with 2 x 90 kg rear ballast adaptation rings mounted on outside of rear wheels with 2 x 225kg weights, VAR.028. Q.ty=4 with 4 x 225kg weights mounted outside of the rear wheels, VAR.029

1шт.

2

10790524

NUT,M16 x 1.5

18шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

16 x 40 x 5

18шт.

4

15981834

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

6шт.

4

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

6шт.

5

87688991

STUD,M16 x 1.5

6шт.
