(1.40.3/14) - (VAR.212) FRONT AXLE WITH ACTIVE SUSPENSIONS AND BRAKES - BRAKE PIPES

Запчасти Case IH PUMA 165 (1.40.3/14) - (VAR.212) FRONT AXLE WITH ACTIVE SUSPENSIONS AND BRAKES - BRAKE PIPES (04) - FRONT AXLE & STEERING

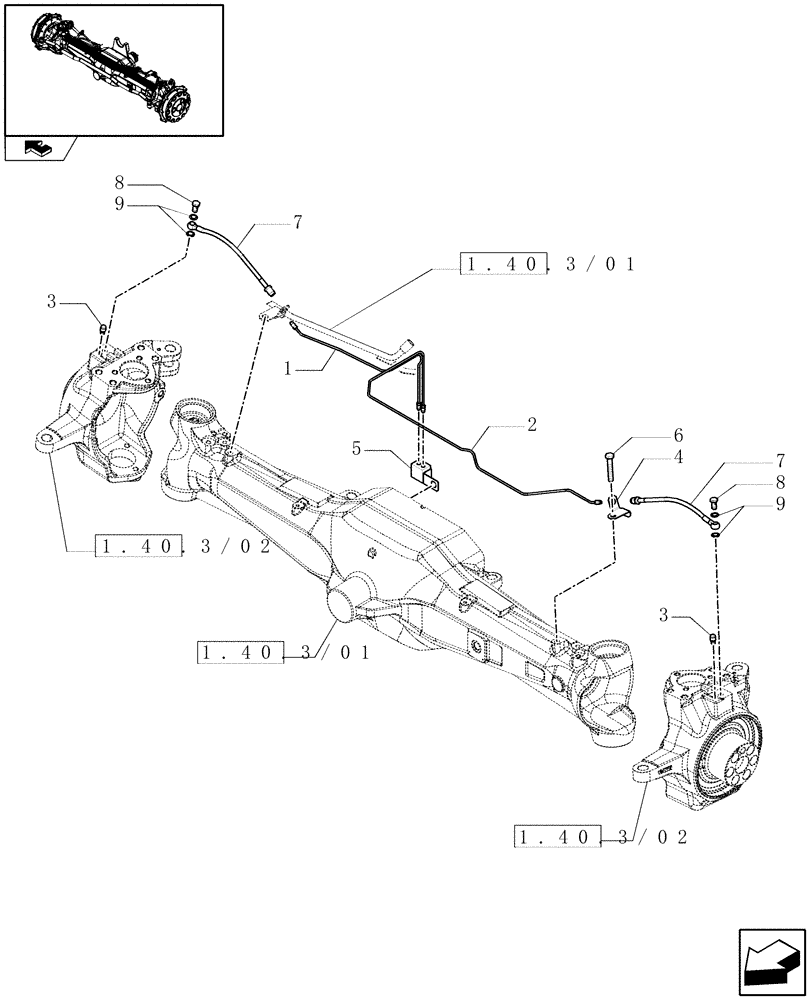

Схема запчастей Case IH PUMA 165 - (1.40.3/14) - (VAR.212) FRONT AXLE WITH ACTIVE SUSPENSIONS AND BRAKES - BRAKE PIPES (04) - FRONT AXLE & STEERING
9
6
8
3
2
1
4
1.40.3/01
1.40.3/01
1.40.3/02
1.40.3/02
7
home
3
8
7
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87592861

RIGID TUBE,4.76 mm ID

RH

1шт.

2

87730130

RIGID TUBE

LH

1шт.

3

13413290

BREATHER

2шт.

4

87592752

BRACKET

LH

1шт.

5

87333539

SUPPORT

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

87655385

FLEXIBLE HOSE

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.
