Запчасти Case IH PUMA 165 (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

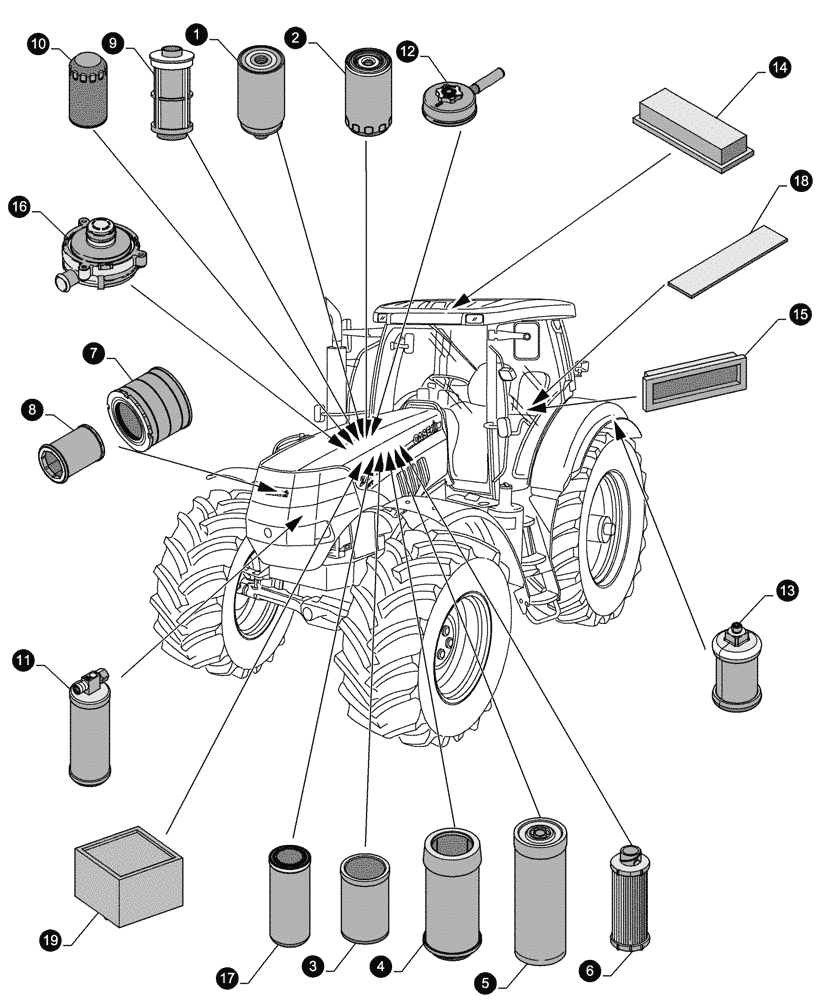

Схема запчастей Case IH PUMA 165 - (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL
8
6
11
12
2
7
9
5
13
19
14
4
17
1
18
3
15
16
10

Артикул

Название

Примечание

Количество

1

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

Primary, w/Water Separator, w/Sensor M14, Every 600 hours

1шт.

Valid with ISL

1шт.

From Serial N. (03 September 2010 Basildon Prod. / ZABH51948 St. Valentin Prod.)

1шт.

1

84170818

FUEL FILTER,96.2mm OD x 183mm L, M16 x 1.5 - 6H, W/ WIF Sensor (M10)

Primary, w/Water Separator, Every 600 hours

1шт.

Valid with STD

1шт.

From Serial N. (03 September 2010 Basildon Prod. / ZABH51948 St. Valentin Prod.)

1шт.

2

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Primary, Spin-On, Every 600 hours

1шт.

Valid with STD

1шт.

From Serial N. (03 September 2010 Basildon Prod. / ZABH51948 St. Valentin Prod.)

1шт.

3

87588814

HYDRAULIC OIL FILTER,151mm L

Transmission/Pump, Every 300 hours

1шт.

Valid with STD

1шт.

From Serial N. (03 September 2010 Basildon Prod. / ZABH51948 St. Valentin Prod.)

1шт.

4

47617638

FILTER

Transmission/Pump, Every 300 hours

1шт.

Valid with STD

1шт.

After Date 11 February 2011

1шт.

5

84324774

HYDRAULIC OIL FILTER

Transmission/Pump, Every 300 hours

1шт.

6

84417139

ELEMENT,267.5mm L, 11 Micron

Transmission/Pump, Every 300 hours

1шт.

For the first Replacement order also: PN 84417137 Housing + PN 84550359 O-Ring

1шт.

7

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Primary Cartridge, Every 1200 hours or annually

1шт.

8

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Secondary Cartridge, Every 1200 hours or annually

1шт.

9

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner, Every 600 hours

1шт.

10

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Primary, w/Water Separator, Every 300 hours

1шт.

Valid with STD

1шт.

From Serial N. (03 September 2010 Basildon Prod. / ZABH51948 St. Valentin Prod.)

1шт.

11

47446235

RECEIVER-DRYER

A/C Condenser, Every 1200 hours or annually

1шт.

12

87304662

BREATHER

Oil Vapour Separator

1шт.

13

84408141

HYDRAULIC OIL FILTER,60mm OD x 142.5mm L, 9/16-18

Transmission/Pump, Every 300 hours

1шт.

14

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 1200 hours or annually

2шт.

Valid with STD

1шт.

From Serial N. (03 September 2010 Basildon Prod. / ZABH51948 St. Valentin Prod.)

1шт.

15

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

1шт.

16

84196302

BREATHER,M30

Oil Vapour Separator

1шт.

17

84341286

HYDRAULIC OIL FILTER,289.5mm L

Transmission/Pump, Every 300 hours

1шт.

18

87726694

FOAM

Outer Cartridge, Foam, Every 1200 hours or annually

1шт.

19

336430A1

FUEL FILTER

30 Microns, Water Separator

1шт.

Valid with Heavy Duty Fuel Filter, Var.414

1шт.

Выбрано товаров: 36
