Запчасти Case IH PUMA 165 (1.29.7[02A]) - TRANSMISSION LUBRICATION SYSTEM - D6475 (03) - TRANSMISSION

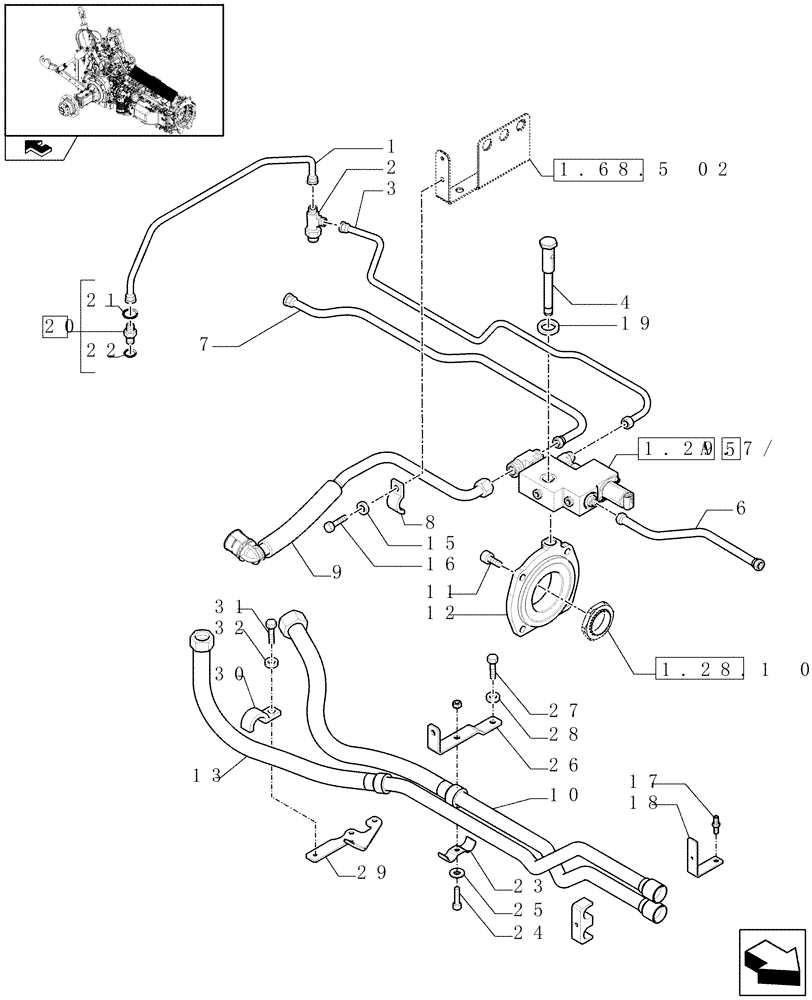

Схема запчастей Case IH PUMA 165 - (1.29.7[02A]) - TRANSMISSION LUBRICATION SYSTEM - D6475 (03) - TRANSMISSION
30
20
12
18
2
32
17
1.29.7/
19
23
27
21
11
16
6
28
1
9
1.28.1 02
home
1.68.5 02
29
15
31
13
22
8
25
5
26
a
10
4
24
3
7

Артикул

Название

Примечание

Количество

1

87744058

HYD TUBE

Brake Lube

1шт.

2

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

3

87676104

PIPE

Brake Lube

1шт.

4

87671358

BANJO BOLT

1шт.

5

87676058

MANIFOLD

ASSY

1шт.

6

87676073

HYD TUBE,16 mm OD x 301.5, 75.5 mm L

Front Lube

1шт.

7

87667420

HYD TUBE,16 mm DIA

Rear Lube

1шт.

8

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

1шт.

9

87659176

PIPE

From Filter

1шт.

10

84236727

HYD TUBE,28 mm OD x 708.50, 102.30 mm L

Cooler IN

1шт.

11

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

4шт.

12

87589206

MANIFOLD

1шт.

13

84236729

HYD TUBE,28 mm OD

Cooler Out

1шт.

14

87608298

CLAMP BRACKET

1шт.

15

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

16

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

17

87316808

STUD,M8 x 1.25mm

M8 x M8

1шт.

18

87608297

BRACKET

1шт.

19

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

D=22

1шт.

20

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

M16 x 1.5

1шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

0.7 x 489 146

1шт.

22

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2.2 W x 13.3

1шт.

23

84238526

CLAMP BRACKET

1шт.

24

86566099

HEX SOC SCREW,M8 x 16mm, Cl 12.9

1шт.

25

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

26

84241305

BRACKET

1шт.

27

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

2шт.

28

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

29

84319208

BRACKET

1шт.

30

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

31

918369

BOLT,Hex, M8 x 12mm, Cl 8.8

2шт.

32

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 32
