Запчасти Case IH PUMA 165 (1.29.6[03]) - HYDRAULIC TRASMISSION CONTROL - PIPES AND BRACKETS (03) - TRANSMISSION

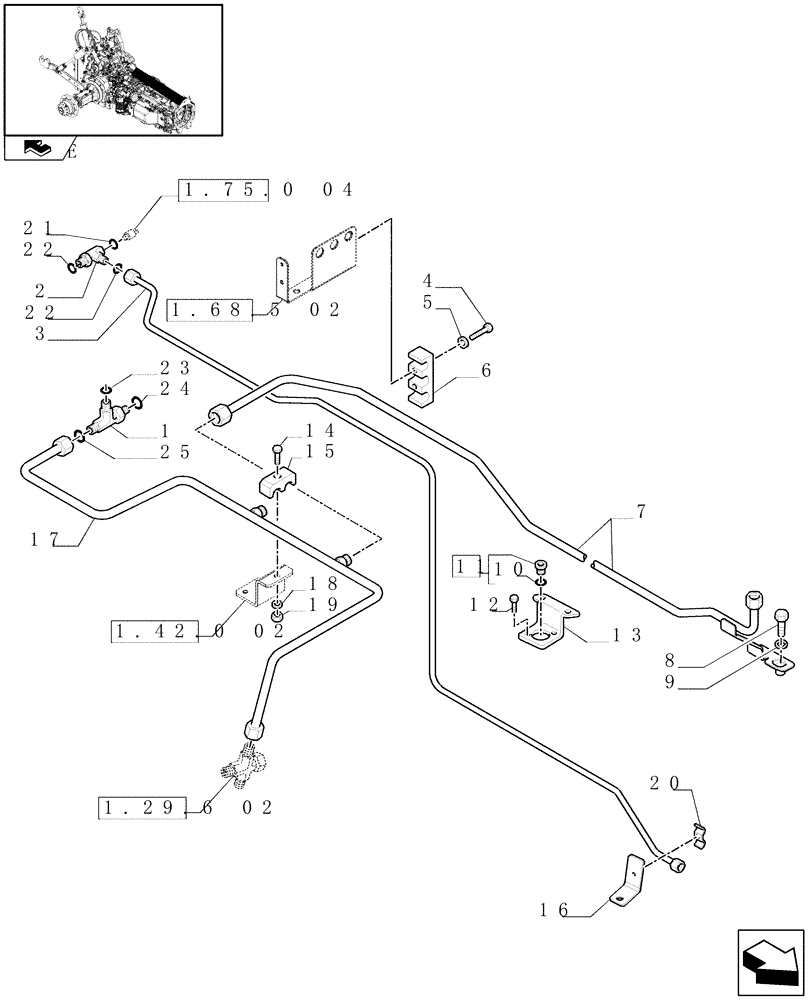

Схема запчастей Case IH PUMA 165 - (1.29.6[03]) - HYDRAULIC TRASMISSION CONTROL - PIPES AND BRACKETS (03) - TRANSMISSION
14
1.68.5 02
1.75.0 04
home
1.29.6 02
1.42.0 02
17
18
20
7
6
21
8
16
3
22
5
19
13
4
1
2
24
9
22
25
10
12
11
15
23

Артикул

Название

Примечание

Количество

1

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

1шт.

2

5195456

HYD CONNECTOR

Incl.22, 23

1шт.

3

87758497

HYD TUBE

Incl.23

1шт.

4

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

5

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

6

87608152

CLAMP BRACKET

1шт.

7

87687057

BRAKE LINE

Booster Brakes

1шт.

8

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.

9

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

16 x 28

1шт.

10

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

11

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

M22 x 1.5

1шт.

12

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

13

87722746

BRACKET

, Serial Range: -C7096

1шт.

14

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

1шт.

15

87608306

CLAMP BRACKET

1шт.

16

87567663

BRACKET

1шт.

17

84152225

HYD TUBE

to Service

1шт.

18

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

19

12574211

NUT,M6 x 1, Cl 8

2шт.

20

87567664

CLAMP BRACKET

1шт.

21

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

22

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

23

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

24

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

Выбрано товаров: 25
