Запчасти Case IH PUMA 160 (90.160.09[01A]) - VAR - 330827, 743710 - ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - ISO - D9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

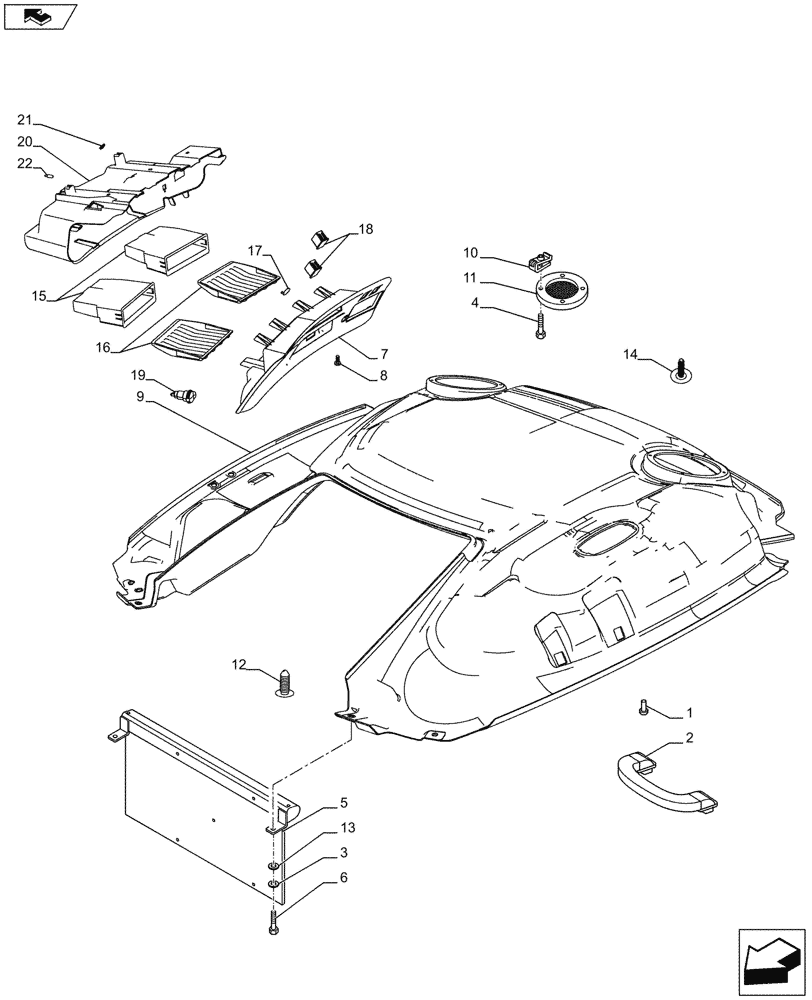

Схема запчастей Case IH PUMA 160 - (90.160.09[01A]) - VAR - 330827, 743710 - ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - ISO - D9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
10
8
6
3
5
19
13
1
20
2
17
14
21
home
4
12
15
7
16
18
9
22

Артикул

Название

Примечание

Количество

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

2

82035643

HANDLE

1шт.

3

12605274

WASHER

2шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

84187829

SCREW,Torx Pan Hd, M5 x 25mm, Cl 4.8

2шт.

7

47388509

BEZEL

, Serial Range: -C7408

1шт.

7

47363735

BEZEL

, Serial Range: -C7408

1шт.

Telescopic/Heated/Remote Adjust Mirrors only, VAR.330827 (Commercial Feature 743710)

1шт.

7

47575526

CONSOLE

, Serial Range: D7408-C7410

1шт.

7

47406288

CONSOLE

, Serial Range: D7408-C7410

1шт.

Telescopic/Heated/Remote Adjust Mirrors only, VAR.330827 (Commercial Feature 743710)

1шт.

7

47778962

CONSOLE

, Start Serial: D7410

1шт.

7

47778953

CONSOLE

, Start Serial: D7410

1шт.

Telescopic/Heated/Remote Adjust Mirrors only, VAR.330827 (Commercial Feature 743710)

1шт.

8

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

7шт.

9

47365504

HEADLINER

1шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

82022875

GRILLE,185mm OD

Speaker

2шт.

12

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

13

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

14

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

15

47364183

BOX

2шт.

16

47470835

INSERT

2шт.

17

47363750

PLUG,23.1mm OD

1шт.

18

82022763

PLUG

2шт.

19

84320279

CIGARETTE LIGHTER

1шт.

20

47378856

CAB STORAGE BOX

Incl 8 (Qty 3), 21, 22, Serial Range: -C7408

1шт.

20

47718243

BEZEL

Incl 8 (Qty 3), 21, 22, Start Serial: D7408

1шт.

21

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

22

47378854

SPACER,5mm ID x 8mm OD x 7.5mm L

3шт.

Выбрано товаров: 31
