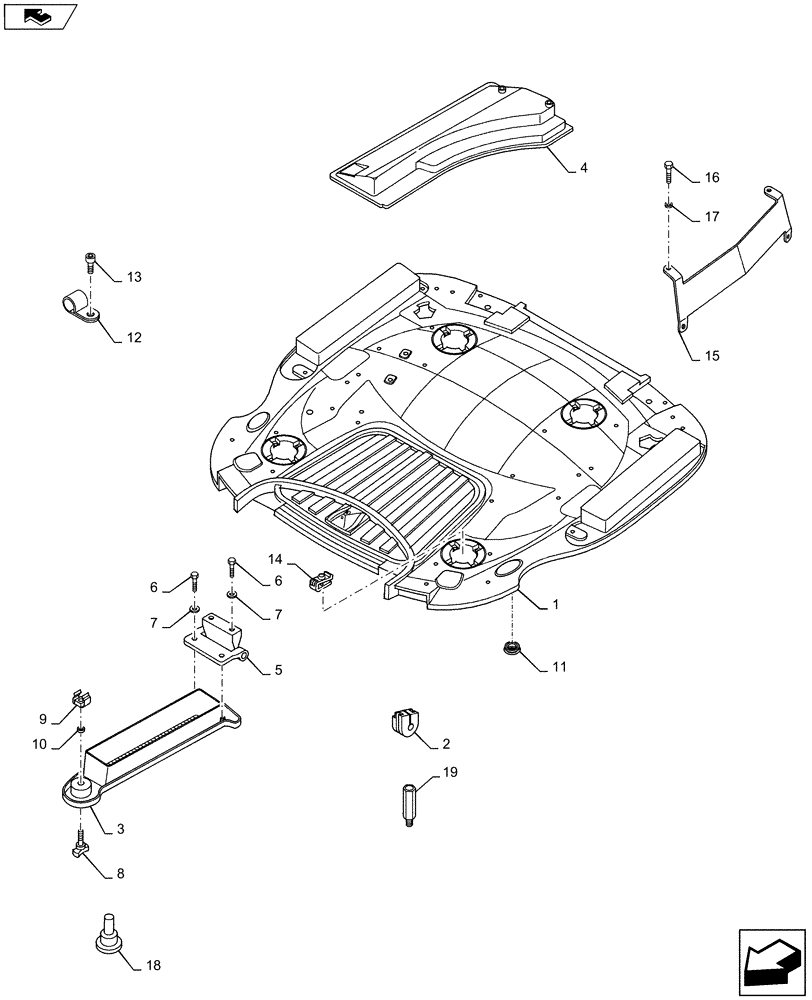

Запчасти Case IH PUMA 160 (90.150.08[02A]) - VAR - 331520, 743729 - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - FRAME - NAR - D9017 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47368945

ROOF FRAME

1шт.

2

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

1шт.

3

87725999

SUPPORT

RH

1шт.

3

82033661

SUPPORT

LH

1шт.

4

87355892

FILTER COVER

RH

1шт.

4

87398509

FILTER COVER

LH

1шт.

5

82033690

HINGE

LH

1шт.

5

82033679

HINGE

RH

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

84516592

KNOB

2шт.

9

87541213

NUT,Cage, M8

2шт.

10

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

11

82032318

PLUG

2шт.

12

87343422

CLAMP

1шт.

13

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

1шт.

13

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

1шт.

14

81872135

NUT,Retaining, M4.20

16шт.

15

84151173

HOLDER

1шт.

16

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

17

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

18

87308028

PLUG

1шт.

19

84592819

SPACER

3шт.
