Запчасти Case IH PUMA 160 (90.150.07[02]) - VAR - 331515, 743729 - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - FRAME - ISO - C9017 (90) - PLATFORM, CAB, BODYWORK AND DECALS

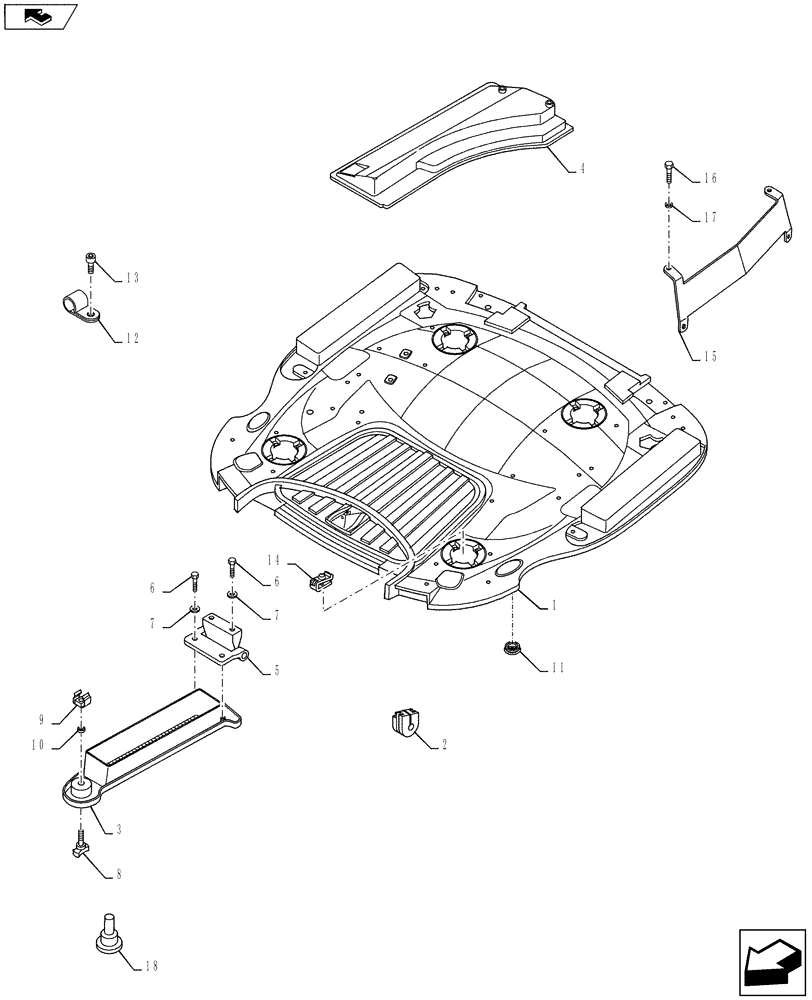

Схема запчастей Case IH PUMA 160 - (90.150.07[02]) - VAR - 331515, 743729 - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - FRAME - ISO - C9017 (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
15
14
16
1
13
8
17
7
7
6
4
2
11
10
6
9
18
12
5
home

Артикул

Название

Примечание

Количество

1

84314464

ROOF FRAME

, Serial Range: -C9016

1шт.

1

84588863

ROOF FRAME

, Start Serial: D9016

1шт.

2

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

1шт.

3

87725999

SUPPORT

RH Filter

1шт.

3

82033661

SUPPORT

LH Filter

1шт.

4

87398509

FILTER COVER

LH

1шт.

4

87355892

FILTER COVER

RH

1шт.

5

82033690

HINGE

LH Filter Frame

1шт.

5

82033679

HINGE

RH Filter Frame

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

5155778

KNOB

, Serial Range: -C9016

2шт.

8

84516592

KNOB

, Start Serial: D9016

1шт.

9

87541213

NUT,Cage, M8

2шт.

10

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

11

82032318

PLUG

2шт.

12

87343422

CLAMP

2шт.

13

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

1шт.

13

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

1шт.

14

81872135

NUT,Retaining, M4.20

16шт.

15

84151173

HOLDER

Radio Support

1шт.

16

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

17

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

18

87308028

PLUG

1шт.

Выбрано товаров: 24
