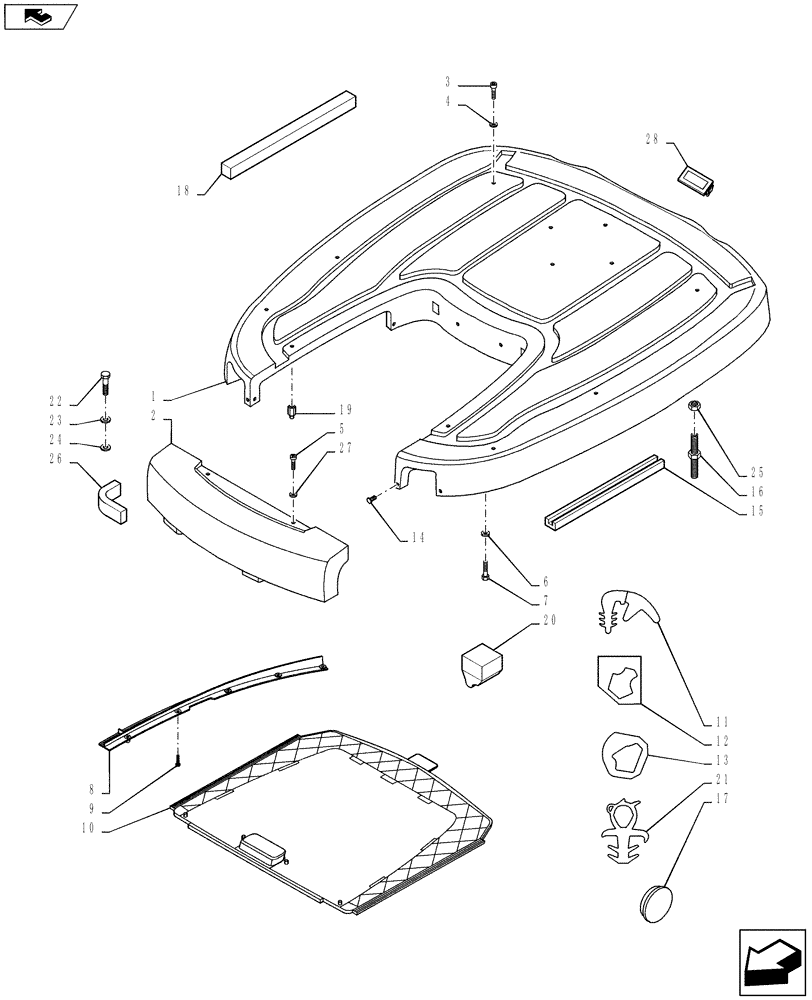

Запчасти Case IH PUMA 160 (90.150.05[01]) - ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - ROOF - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84316056

ROOF

1шт.

2

82037425

COVER

1шт.

3

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

8шт.

4

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

SEAL WASHER

8шт.

5

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

4шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

7

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

8

87640268

GUIDE

RH Shade

1шт.

8

87640267

GUIDE

LH Shade

1шт.

9

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.

10

87640273

SUN VISOR

1шт.

11

82034370

SEAL

1шт.

12

82038034

INSULATION

LH, C Pillar

1шт.

12

82038033

GASKET,10mm Thk

RH, C Pillar

1шт.

13

82025910

GASKET,10 Thk, Black

LH, A Pillar

1шт.

13

82023417

GASKET,10mm Thk, Black

RH, A Pillar

1шт.

14

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

10шт.

15

82028318

SEAL

1шт.

16

82034115

STUD

2шт.

17

87519328

BLANK-OFF PLUG,M32 x 9 x 3.1

1шт.

18

82035600

GASKET

2шт.

19

82034114

SPACER,M6 x 25mm L

8шт.

20

82036366

SEAL,21mm W x 5000mm L

1шт.

21

82032314

SEAL,for High Visibility Window

1шт.

22

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

23

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

24

10571579

LOCK WASHER,M6

2шт.

25

14048211

NUT,M8 x 1.25, Cl 8

2шт.

26

82000733

STRIP-GASKET

2шт.

27

84193288

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

28

5151033

PLASTIC PLUG

2шт.
