Запчасти Case IH PUMA 160 (90.124.06) - VAR - 743715, 330709, 332709 - DELUXE SUSPENSION SEAT - SUSPENSION COMPONENTS - HEATED SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS

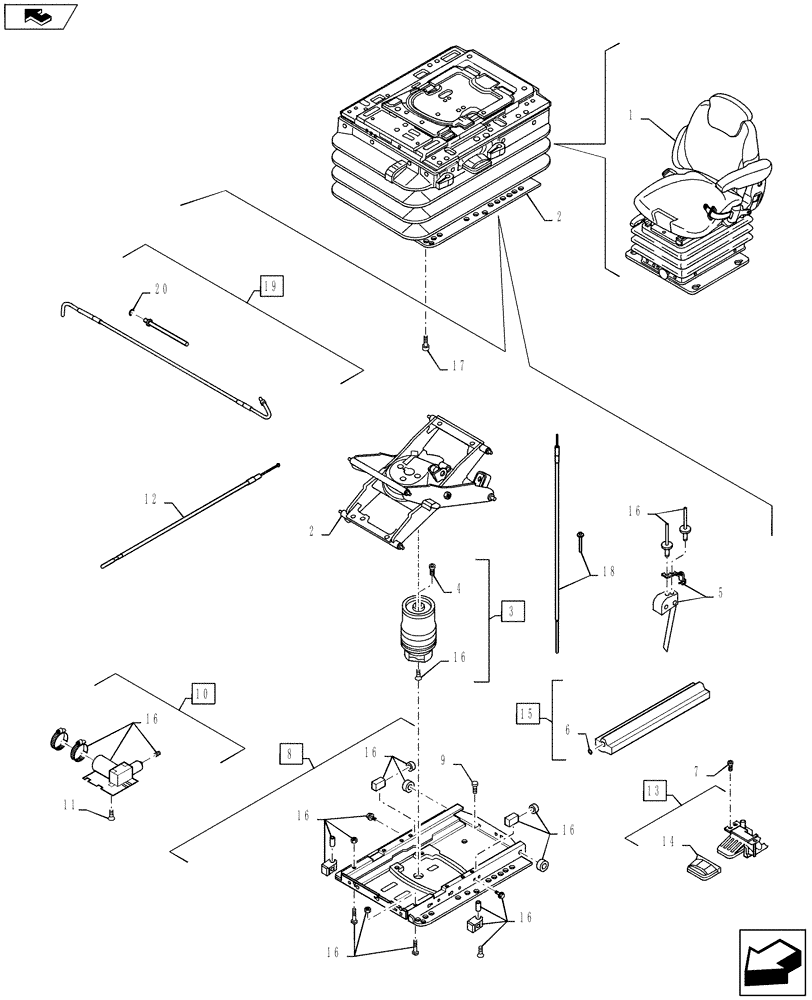

Схема запчастей Case IH PUMA 160 - (90.124.06) - VAR - 743715, 330709, 332709 - DELUXE SUSPENSION SEAT - SUSPENSION COMPONENTS - HEATED SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
7
16
16
17
3
20
16
18
2
16
16
1
home
15
6
5
12
14
16
10
2
8
9
13
16
4
19
11

Артикул

Название

Примечание

Количество

1

87486990

SEAT

Heated, EHR, VAR 330709, 743715

1шт.

1

84171102

SEAT

Heated, Mech Remotes, VAR 332709

1шт.

2

84191066

SUSPENSION

Incl 17

1шт.

3

84190972

SHOCK ABSORBER

Incl 4, 16

1шт.

4

84191012

REPAIR KIT

1шт.

5

84190962

KIT

Incl 16

1шт.

6

84191086

REPAIR KIT

1шт.

7

84191017

REPAIR KIT

1шт.

8

84190976

PLATE

Incl 9, 16

1шт.

9

84191014

REPAIR KIT

1шт.

10

84190980

AIR COMPRESSOR

Incl 11, 16

1шт.

11

84191008

REPAIR KIT

1шт.

12

84190997

BOWDEN CONTROL

1шт.

13

345107A1

LEVER

Incl 14

1шт.

14

84191000

HANDLE

1шт.

15

84191082

SERVICE KIT

Incl 6

1шт.

16

84190975

REPAIR KIT

1шт.

17

84191020

REPAIR KIT

1шт.

18

84191077

TUBE

1шт.

19

84191079

KIT

Incl 20

1шт.

20

84191016

REPAIR KIT

1шт.

Выбрано товаров: 21
