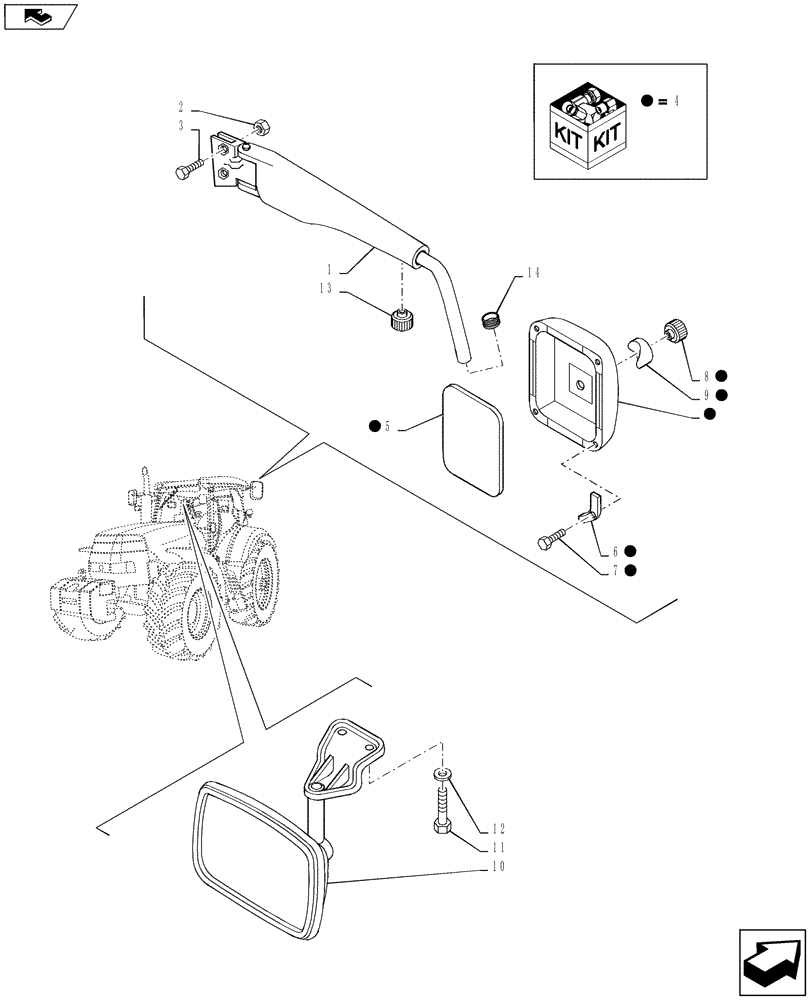

Запчасти Case IH PUMA 160 (90.118.04) - TELESCOPIC REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87314381

MIRROR ARM

LH, Incl 13

1шт.

1

84398575

MIRROR ARM

RH, Incl 13

1шт.

2

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

3

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

4

87339177

MIRROR ASSY.

Incl 5 - 9

2шт.

5

82035218

MIRROR,300mm x 200mm

1шт.

6

87531094

BRACKET

4шт.

7

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

8

82016257

KNOB

1шт.

9

82035908

WASHER

2шт.

10

87556793

MIRROR

Interior

1шт.

11

84187812

SCREW,Torx, Pan HD, M6 x 16mm, Cl 4.8

2шт.

12

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

13

87365131

KNOB

1шт.

14

82039492

GROMMET,6mm ID x 20mm OD, Rubber

2шт.
