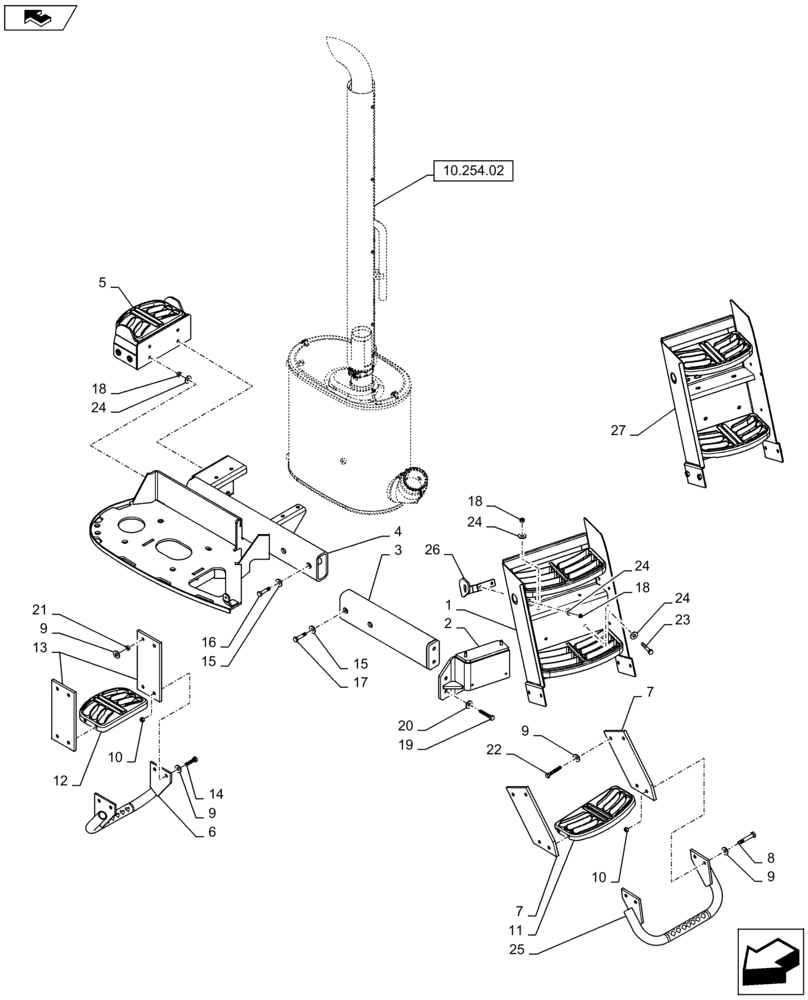

Запчасти Case IH PUMA 160 (90.118.02) - VAR - 331461 - STEP LADDER - WITH EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84370544

STEP

LH Upper, Serial Range: -C7151

1шт.

1

84483081

STEP

, Serial Range: D7151-C7341

1шт.

2

84414020

BRACKET

LH Step Mount

1шт.

3

84238605

SUPPORT

LH

1шт.

4

84402062

BEAM

RH Support

1шт.

5

84370539

STEP

RH Lower

1шт.

6

84178040

STEP

1шт.

7

87565408

SUPPORT

Rubber Step

2шт.

8

16040824

SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

9

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

16шт.

10

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

8шт.

11

87371925

STEP

Rubber Supported, Narrow Tread

1шт.

12

84179556

STEP

1шт.

13

84178000

SUPPORT

2шт.

14

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

15

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

16

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

2шт.

17

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

2шт.

18

43362

NUT,M8 x 1.25, Cl 10

6шт.

19

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

20

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

4шт.

22

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

23

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

24

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

8шт.

25

84125913

STEP

Lower

1шт.

26

84487990

BRACKET

, Start Serial: D7151

1шт.

27

47367592

STEP

, Start Serial: D7341

1шт.
