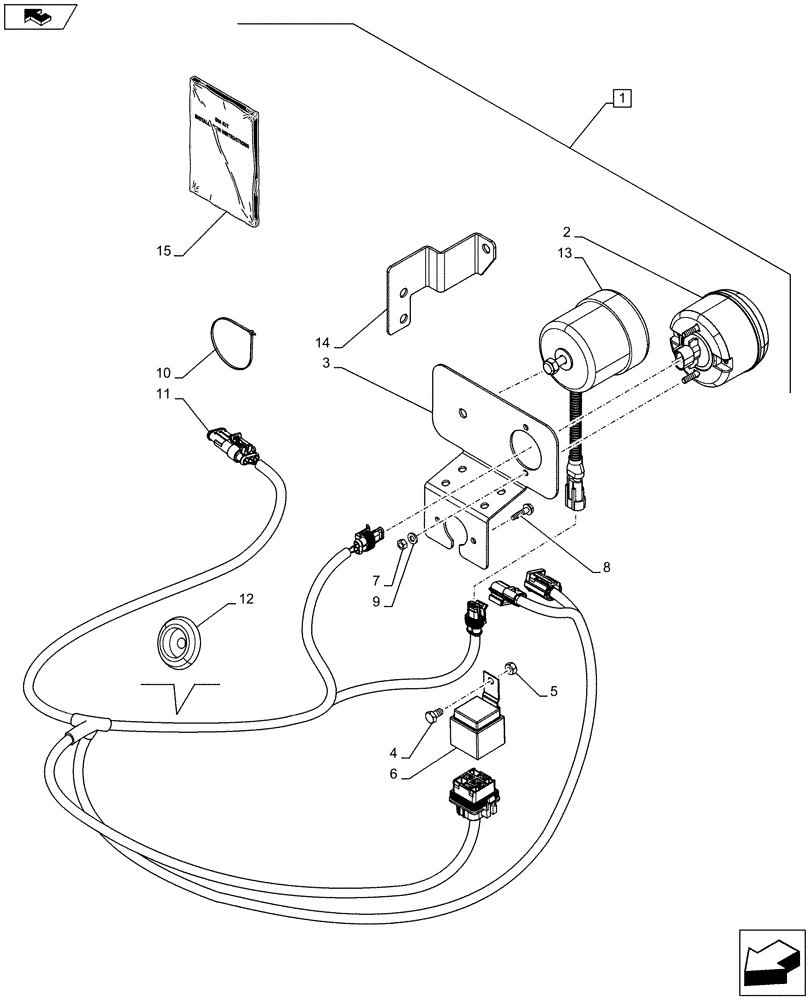

Запчасти Case IH PUMA 160 (88.055.14[01A]) - DIA KIT - REVERSE ALARM AND LIGHT - HARNESS AND RELATED PARTS (88) - ACCESSORIES

1

719161024

DIA KIT, TRACTOR

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84185527

LIGHT,12V, 21W, Clear

1шт.

3

84477793

BRACKET

1шт.

4

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

5

15896211

NUT,M6, Cl 8

1шт.

6

82017871

RELAY,12V, 20A

1шт.

7

86508813

NUT,M5, Cl 8

2шт.

8

84144660

SELF-TAP SCREW,Hex, HWHD, #10-16 x 3/4"

2шт.

9

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

10

87718512

COLLAR,198 mm L

3шт.

10

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

5шт.

11

84520026

WIRE HARNESS

ASSY, Contains Ref. 12

1шт.

12

82016008

GROMMET,45.47mm OD x 32mm ID x 19.05mm Thk

1шт.

13

84470196

BACKUP ALARM

1шт.

14

87684972

BRACKET, SUPPORTING

1шт.

15

84280610

INSTRUCTION

1шт.
