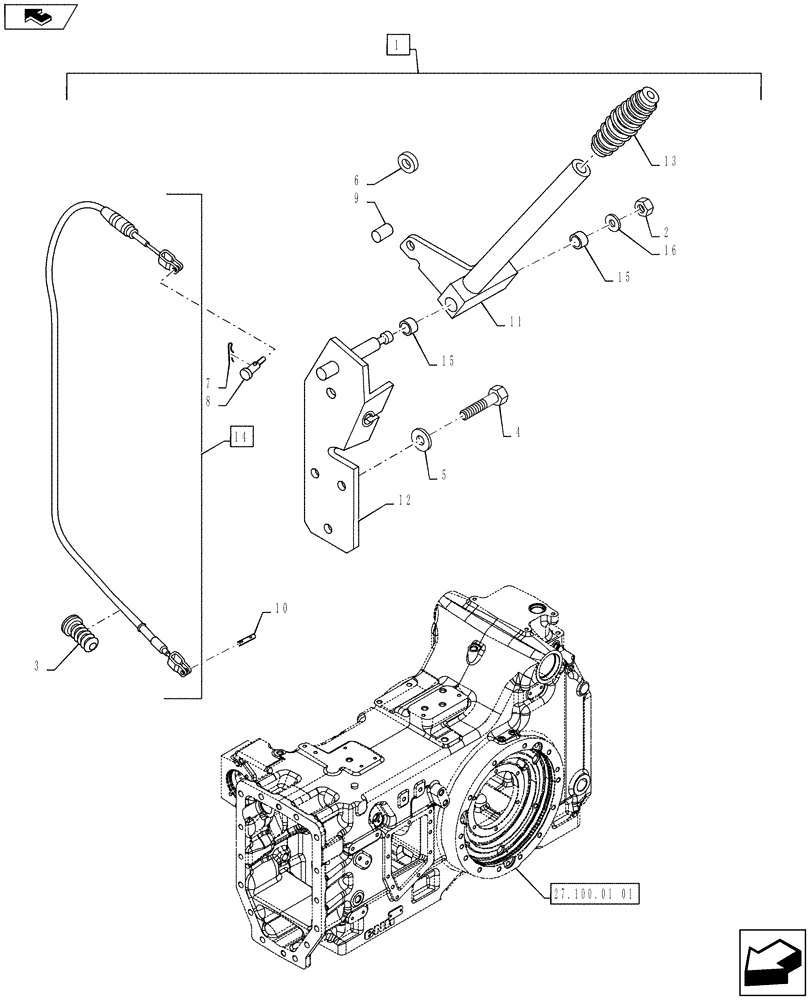

Запчасти Case IH PUMA 160 (88.037.07[03]) - DIA KIT, AUTOMATIC PICK UP HITCH WITH HYDR. PUSH BACK - PUMA 160 (88) - ACCESSORIES

1

710086064

DIA KIT, TRACTOR

Hydraulic Push Back Hitch, EDC 80mm Rams, Incl 2 - 16. Kit Incl figures 88.037.07 01 - 03

1шт.

2

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

4

13632821

CAPTIVE WASHER SCREW,M8 x 25mm

3шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

9635806

CIRCLIP,Ext., 0.392" Dia

1шт.

7

82033370

COTTER PIN,10mm OD

1шт.

8

81868749

PIN,7.9mm OD x 15.08mm L

1шт.

9

87330878

CAP,9.50mm ID x 13.30

1шт.

10

83957394

PIN,0.072" x 0.82"

1шт.

11

87665892

LEVER

1шт.

12

87531029

SUPPORT

1шт.

13

87666034

HANDLE GRIP

1шт.

14

87307765

CABLE,1650mm L

Incl 3

1шт.

15

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

16

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.
