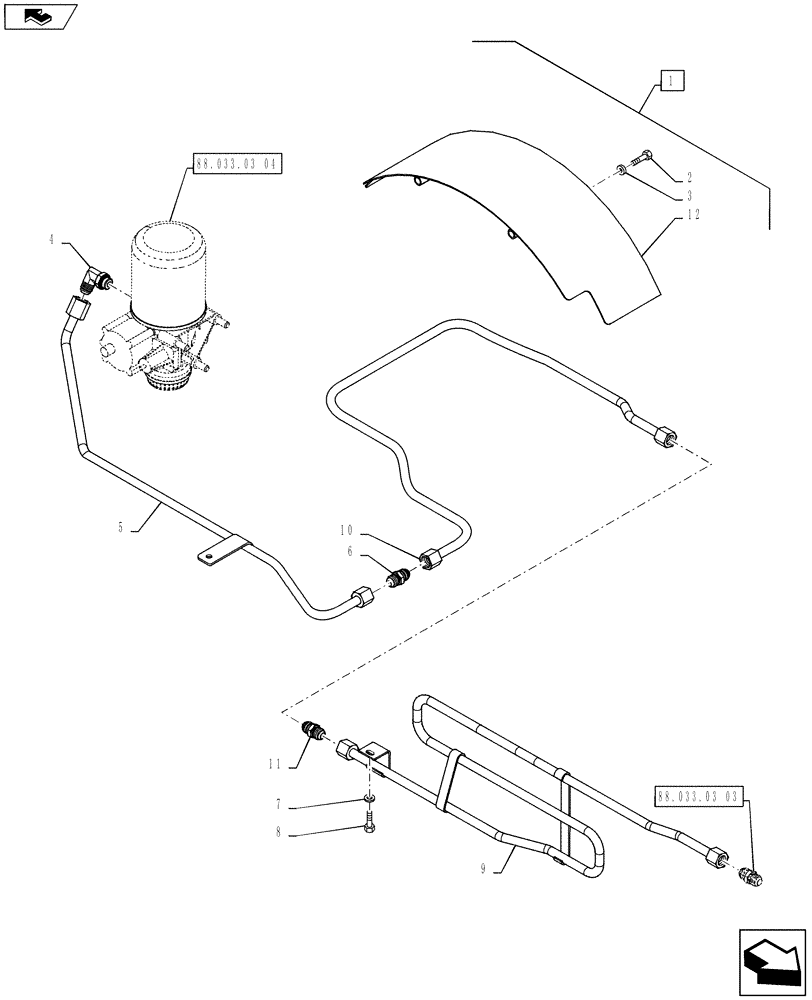

Запчасти Case IH PUMA 160 (88.033.03[05]) - DIA KIT, PNEUMATIC TRAILER BRAKE ITALY - REGENERATION AIR DRYER PIPES (88) - ACCESSORIES

1

718385184

DIA KIT, TRACTOR, TO

Pneumatic Italian Trailer Brake, Incl 2 - 11. Kit Incl Figures 88.033.03 01 - 12

1шт.

2

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

2шт.

5

84282990

HYD TUBE

Cooler to Dryer, Puma 160, Serial Range: -C7185

1шт.

5

84555448

HYD TUBE

Cooler to Dryer, Puma 160, Start Serial: D7185

1шт.

5

84282988

HYD TUBE

Cooler to Dryer, Puma 130, 145, Serial Range: -C7185

1шт.

5

84556517

HYD TUBE

Cooler to Dryer, Puma 130, 145, Start Serial: D7185

1шт.

6

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

8

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

9

87702803

RIGID TUBE,16.00mm OD

1шт.

10

84317595

PIPE

Cooler To Dryer

1шт.

11

87667105

GUARD

1шт.
