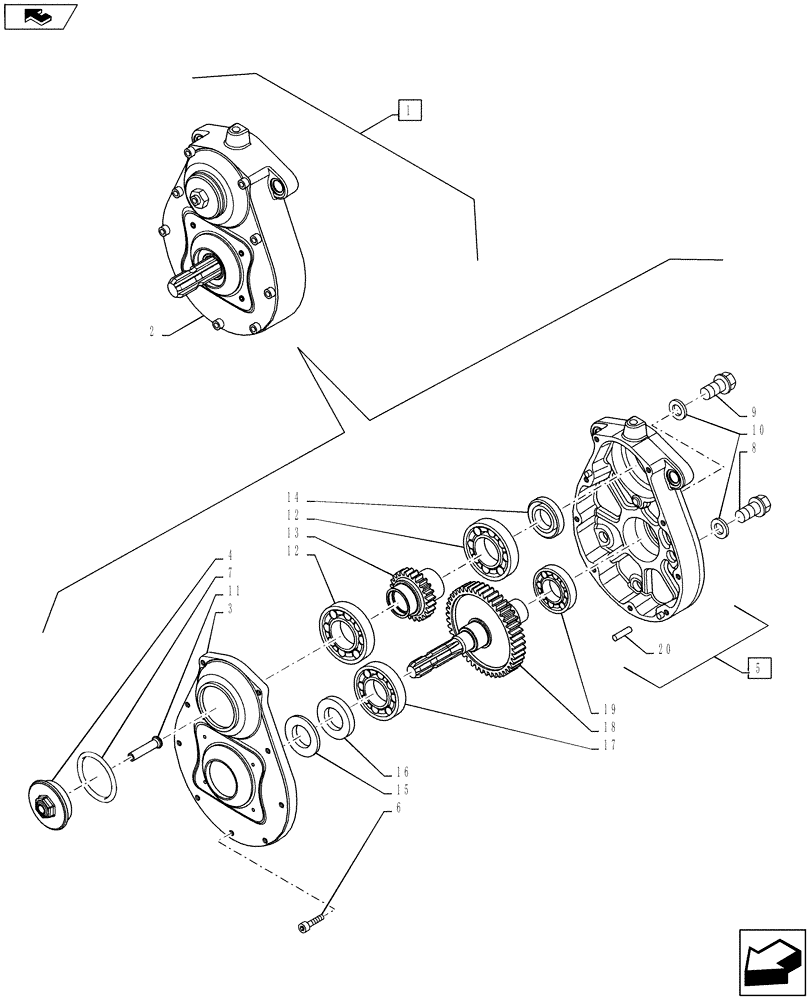

Запчасти Case IH PUMA 160 (88.031.01[07]) - DIA KIT, FRONT POWER TAKE-OFF - GEARBOX - BREAKDOWN (88) - ACCESSORIES

1

719098064

DIA KIT, TRACTOR

Incl 2, Front PTO, 6 Spline, 1000 RPM, Kit Incl figures 88.033.01 01 - 07

1шт.

2

84265034

GEARBOX

Incl 3 - 20

1шт.

3

84265038

COVER

1шт.

4

47126758

PLUG,M70 x 2

1шт.

5

5197431

HOUSING

Incl 20

1шт.

6

14307634

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 10.9, Full Thd

9шт.

7

14460480

O-RING,2.612" ID x 2.818" OD x .103"

1шт.

8

5118991

PLUG,M22 x 1.5

1шт.

9

10305171

PLUG,M22 x 1.5 x 21

1шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

47126760

TUBE

1шт.

12

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

2шт.

13

87731121

GEAR,22T, 28T

Input

1шт.

14

5119540

SEAL,60mm ID x 85mm OD x 8mm Thk

1шт.

15

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

1шт.

16

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

1шт.

17

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

18

84265032

GEAR,53T

Output

1шт.

19

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

20

10839710

DOWEL,M10 x 15.00mm

2шт.
