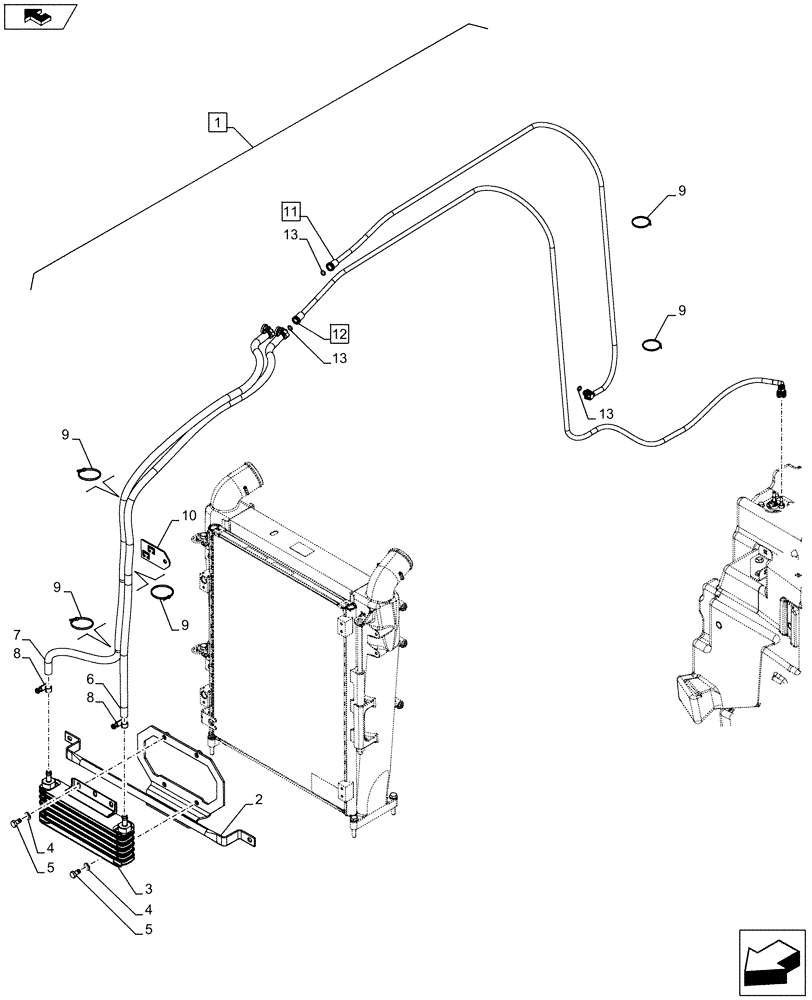

Запчасти Case IH PUMA 160 (88.010.03) - DIA KIT, FUEL COOLER (88) - ACCESSORIES

1

719831010

DIA KIT, TRACTOR

Fuel Cooler, Incl 2 - 13

1шт.

2

84406619

SUPPORT

1шт.

3

84336275

FUEL COOLER

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

6

84410133

HOSE

1шт.

7

84410131

HOSE

1шт.

8

82039341

CLAMP,12mm - 22mm

2шт.

9

86566989

CABLE TIE,208mm L

6шт.

10

84378599

PLATE

1шт.

11

84359923

FUEL HOSE

ASSY, Incl 13

1шт.

12

84359922

FUEL HOSE

ASSY, Incl 13

1шт.

13

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

3шт.
