(41.432.05[01]) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - PUMA 130 & 145 - C7113

Запчасти Case IH PUMA 160 (41.432.05[01]) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - PUMA 130 & 145 - C7113 (41) - STEERING

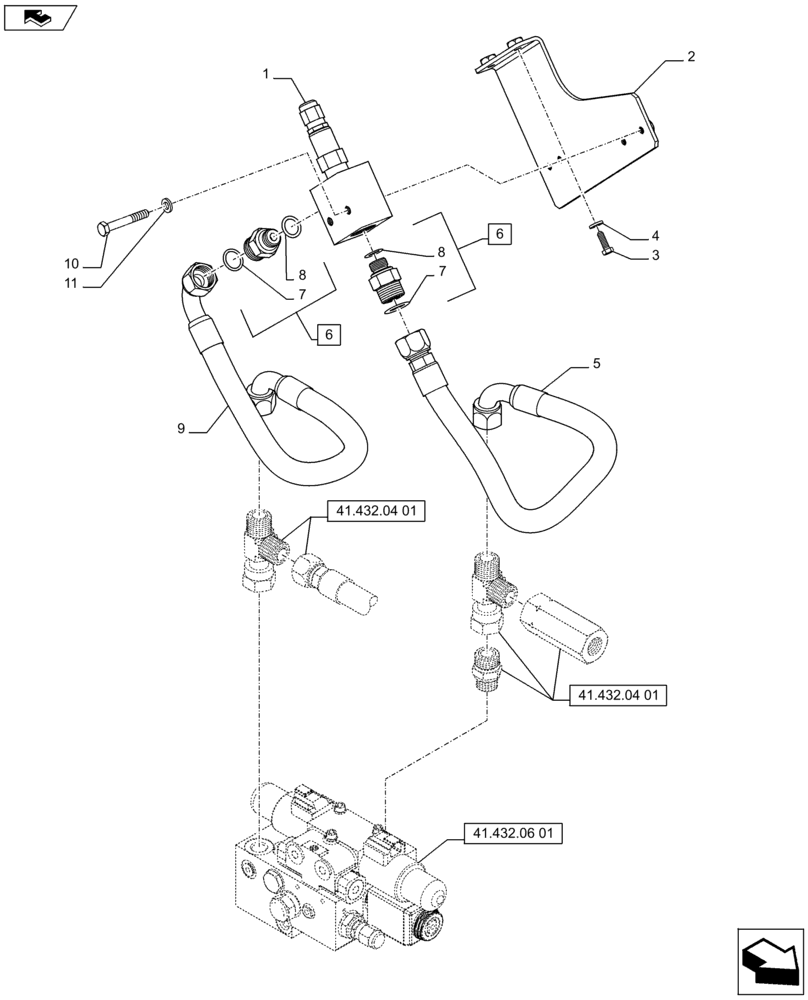

Схема запчастей Case IH PUMA 160 - (41.432.05[01]) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - PUMA 130 & 145 - C7113 (41) - STEERING
4
6
5
41.432.04 01
1
8
10
9
41.432.06 01
41.432.04 01
2
7
home
6
7
1
3
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87733695

HYDRAULIC VALVE

1шт.

2

84256841

BRACKET

1шт.

3

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

4

10516474

LOCK WASHER

2шт.

5

84251788

HOSE ASSY.

1шт.

6

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

Incl 7, 8

2шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

9

84251777

HOSE

1шт.

10

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

11

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.
