Запчасти Case IH PUMA 160 (41.432.04[01A]) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - PUMA 160 - D7113 - C7121 (41) - STEERING

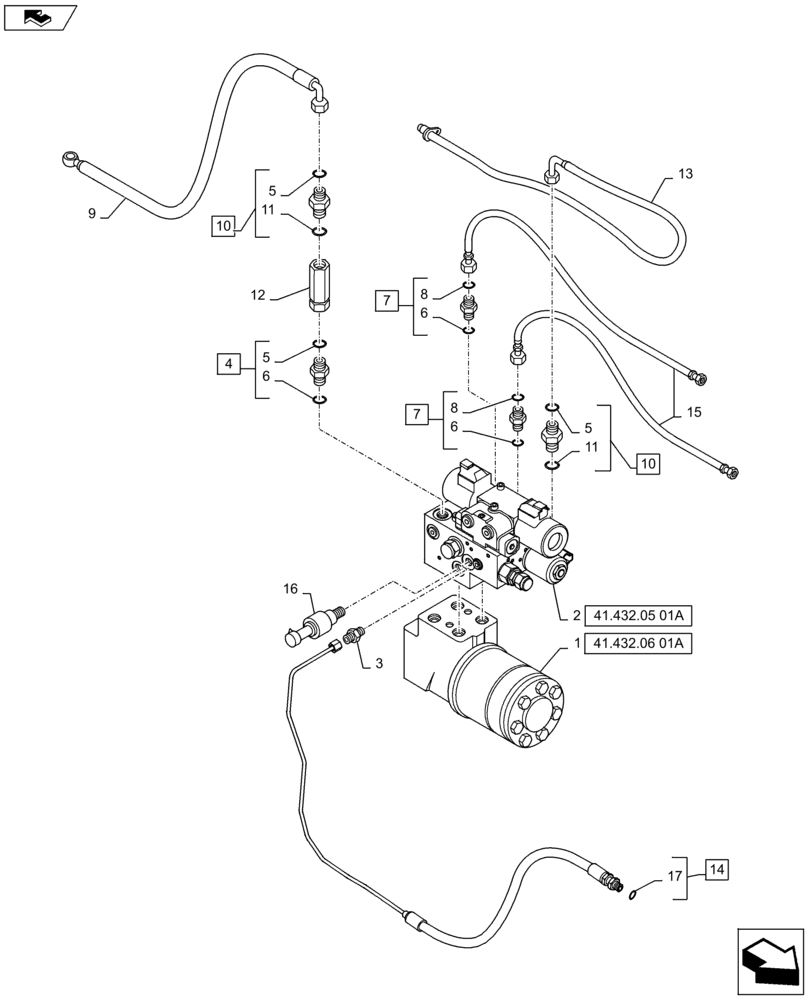

Схема запчастей Case IH PUMA 160 - (41.432.04[01A]) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - PUMA 160 - D7113 - C7121 (41) - STEERING
1
1
3
10
10
14
41.432.06 01a
6
41.432.05 01a
17
9
7
8
1
13
home
1
12
5
7
16
5
15
4
2
5
6
8
1
6

Артикул

Название

Примечание

Количество

1

84261626

STEERING VALVE

1шт.

2

84166215

VALVE SECTION

1шт.

3

76076087

FITTING,M12 x 1.5 ORB x 9/16"-18 ORFS

1шт.

4

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

Incl 5, 6

1шт.

5

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

3шт.

7

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

Incl 6, 8

2шт.

8

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

87735435

HOSE ASSY.

1шт.

10

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Incl 5, 11

2шт.

11

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

12

87350633

FILTER

1шт.

13

87735434

HOSE ASSY.

1шт.

14

84370138

HYD TUBE

Load Sense

1шт.

15

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

2шт.

16

87428328

PRESSURE SWITCH

High

1шт.

17

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 17
