Запчасти Case IH PUMA 160 (41.432.01[01]) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - PUMA 130 & 145 - C9026 (41) - STEERING

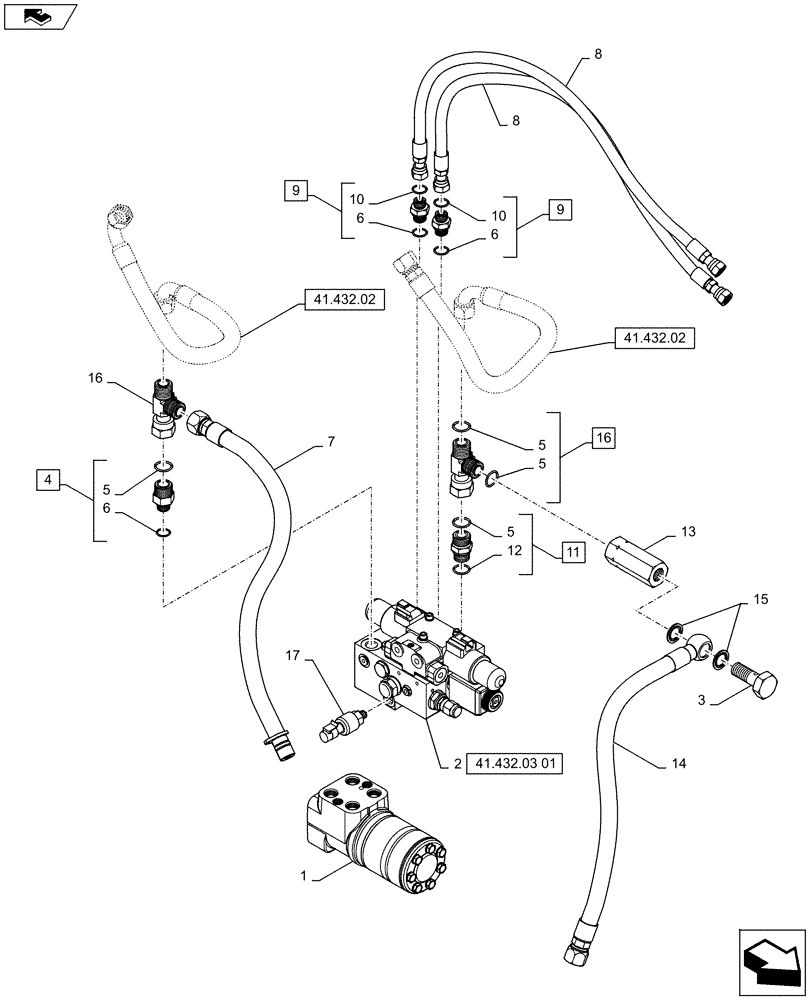

Схема запчастей Case IH PUMA 160 - (41.432.01[01]) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES - PUMA 130 & 145 - C9026 (41) - STEERING
9
13
8
9
6
15
10
4
5
41.432.02
17
1
41.432.02
5
7
5
5
14
3
1
6
12
16
home
6
2
10
41.432.03 01
1
9
8
16

Артикул

Название

Примечание

Количество

1

84198307

HYDRAULIC VALVE

1шт.

2

84211905

CONTROL VALVE

ASSY

1шт.

3

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

4

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

7

87735434

HOSE ASSY.

Autoguide Return

1шт.

8

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

Steering

1шт.

9

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

13

87350633

FILTER

1шт.

14

87735435

HOSE ASSY.

Autoguide Pressure

1шт.

15

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

16

84989850

3 WAY CONNECTION

2шт.

17

87428328

PRESSURE SWITCH

High Pressure

1шт.

Выбрано товаров: 17
