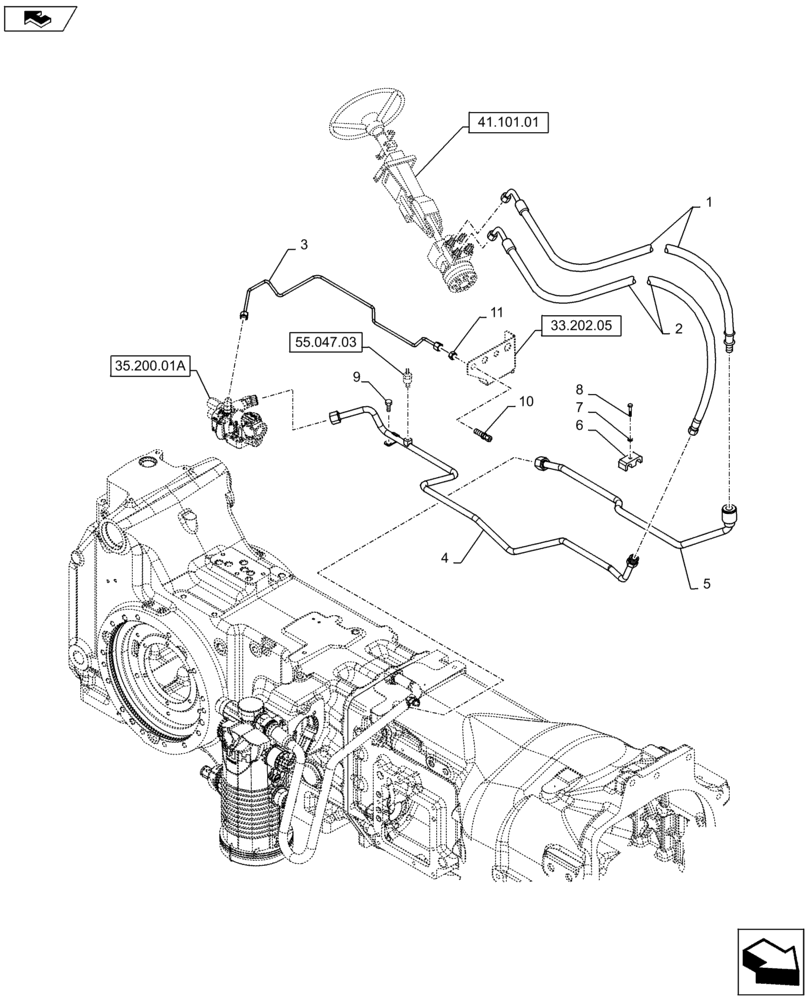

Запчасти Case IH PUMA 160 (41.200.06[01A]) - POWER STEERING DELIVERY AND RETURN PIPES - D7113 (41) - STEERING

1

87367555

HOSE ASSY.,12.7mm ID x 570mm L, SAE 100R2

Return, Serial Range: -C9024

1шт.

1

84497517

HOSE

Return, Start Serial: D9024

1шт.

2

87367548

HOSE ASSY.,540.00mm

Feed, Serial Range: -C9028

1шт.

2

84402486

HOSE,12.7mm ID x 540mm L, SAE 100R16

Feed, Start Serial: D9028

1шт.

3

84378841

HYD TUBE

Load Sense

1шт.

4

84349343

HYD TUBE,16.00mm OD x 1245.90mm

Supply Steering

1шт.

5

84350252

PIPE,16.00mm OD x 664.20mm

From Steering

1шт.

6

87608306

CLAMP BRACKET

1шт.

7

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

, Serial Range: -C7286

1шт.

7

12640624

WASHER,6.15mm ID x 25mm OD x 2mm Thk

6.15 x 25 x 2, R80, DAC, Start Serial: D7286

1шт.

8

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

9

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

10

84382608

FITTING

1шт.

11

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

, Start Serial: D7286

1шт.
