Запчасти Case IH PUMA 160 (41.200.02) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE - STEERING CYLINDER PIPES AND POWER STEERING PIPES (41) - STEERING

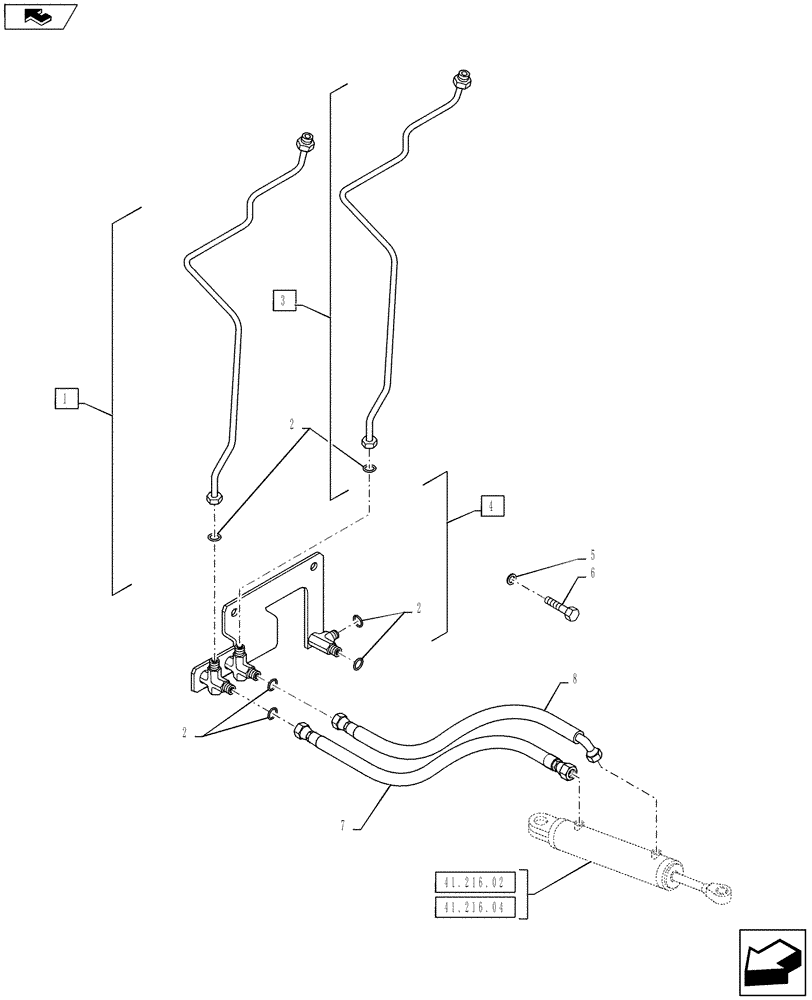

Схема запчастей Case IH PUMA 160 - (41.200.02) - VAR - 330414, 330427, 330429, 330430 - SUSPENDED FRONT AXLE - STEERING CYLINDER PIPES AND POWER STEERING PIPES (41) - STEERING
3
1
5
2
4
home
41.216.04
41.216.02
6
2
7
8
2

Артикул

Название

Примечание

Количество

1

82029212

HYD TUBE,10.00mm OD x 90.00mm

Incl 2

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

3

82035900

RIGID TUBE,10.00mm OD x 90.00mm

Incl 2

1шт.

4

87325469

SUPPORT ASSY.

Incl 2

1шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

82036782

HYDRAULIC HOSE,450.00mm

1шт.

8

87359495

HYDRAULIC HOSE,520.00mm

HOSE

1шт.

Выбрано товаров: 8
