(41.200.01) - VAR - 330408 - STANDARD FRONT AXLE - STEERING CYLINDER PIPES AND POWER STEERING PIPES

Запчасти Case IH PUMA 160 (41.200.01) - VAR - 330408 - STANDARD FRONT AXLE - STEERING CYLINDER PIPES AND POWER STEERING PIPES (41) - STEERING

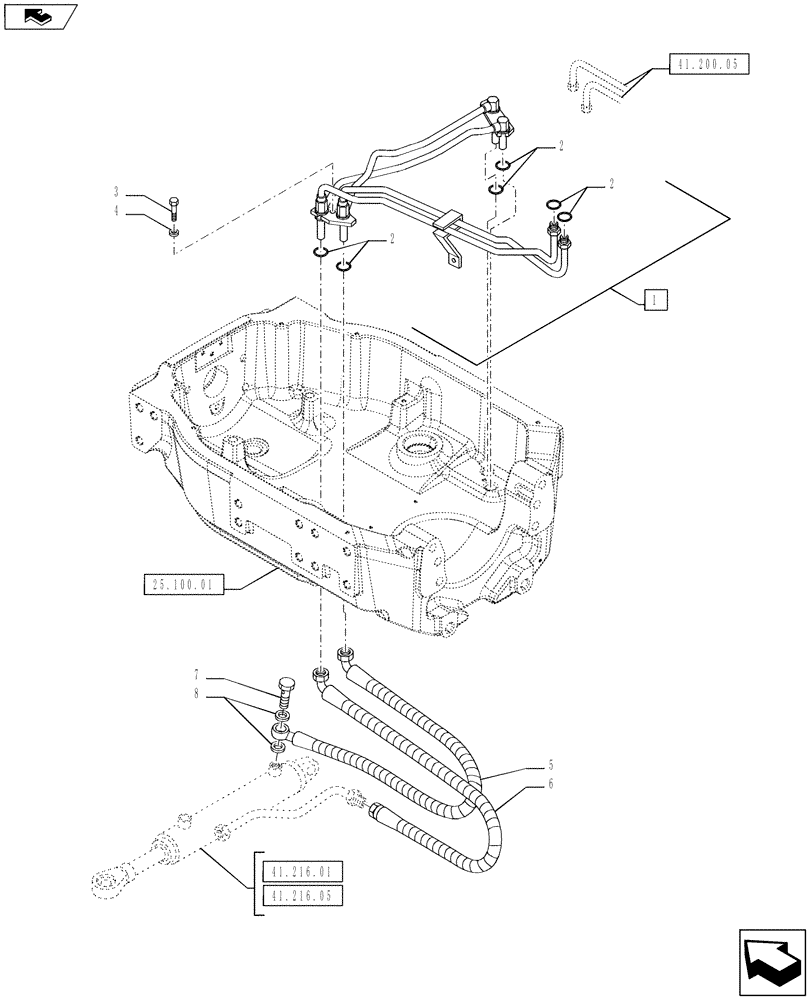

Схема запчастей Case IH PUMA 160 - (41.200.01) - VAR - 330408 - STANDARD FRONT AXLE - STEERING CYLINDER PIPES AND POWER STEERING PIPES (41) - STEERING
home
41.216.01
41.216.05
25.100.01
41.200.05
7
2
8
2
2
5
3
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702719

PRESSURE PIPE

Incl 2

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

87635653

HOSE,675.00mm

RH

1шт.

5

87644884

HOSE,675.00mm

LH

1шт.

6

87352542

HOSE,550.00mm

2шт.

7

4864083

BANJO BOLT,M14 x 1.5 x 30mm

1шт.

8

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

2шт.
