(41.106.02) - VAR - 330408, 330429, 330430 - CL.4 FRONT AXLE - STEERING TIE-ROD

Запчасти Case IH PUMA 160 (41.106.02) - VAR - 330408, 330429, 330430 - CL.4 FRONT AXLE - STEERING TIE-ROD (41) - STEERING

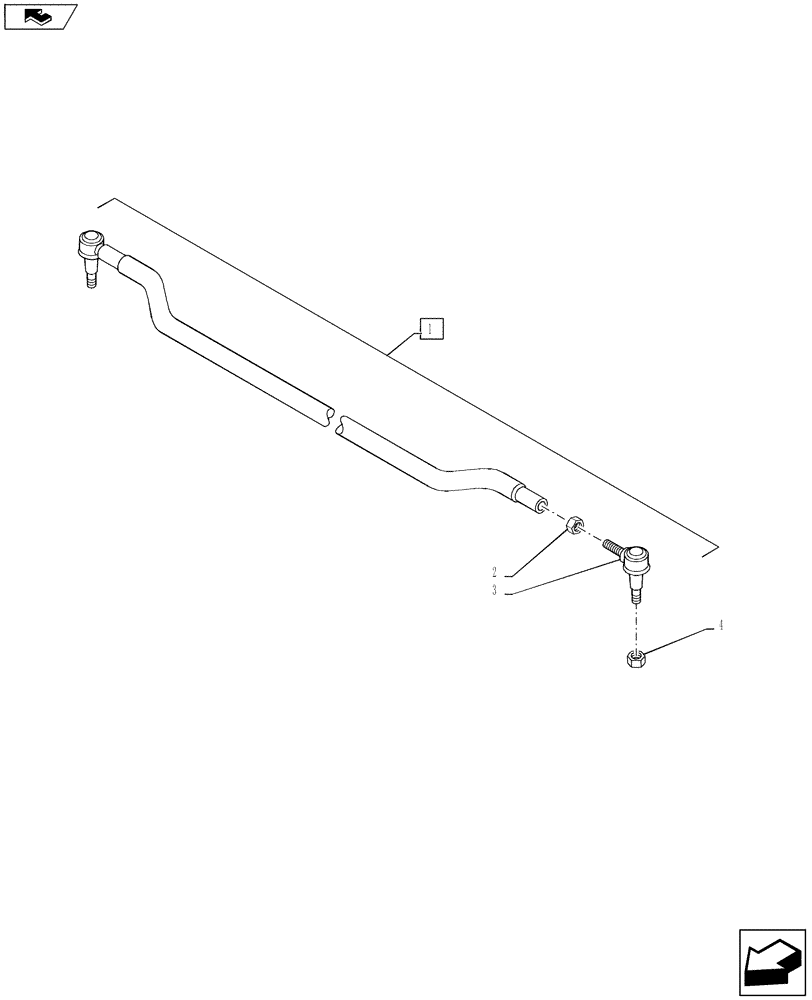

Схема запчастей Case IH PUMA 160 - (41.106.02) - VAR - 330408, 330429, 330430 - CL.4 FRONT AXLE - STEERING TIE-ROD (41) - STEERING
home
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87332622

TRACK ROD ASSY

Incl 2, 3

1шт.

2

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

3

87395648

BALL JOINT,M24 x 1.25 x 105mm

1шт.

4

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.
