Запчасти Case IH PUMA 160 (41.101.01[01]) - STANDARD STEERING - STEERING COLUMN (41) - STEERING

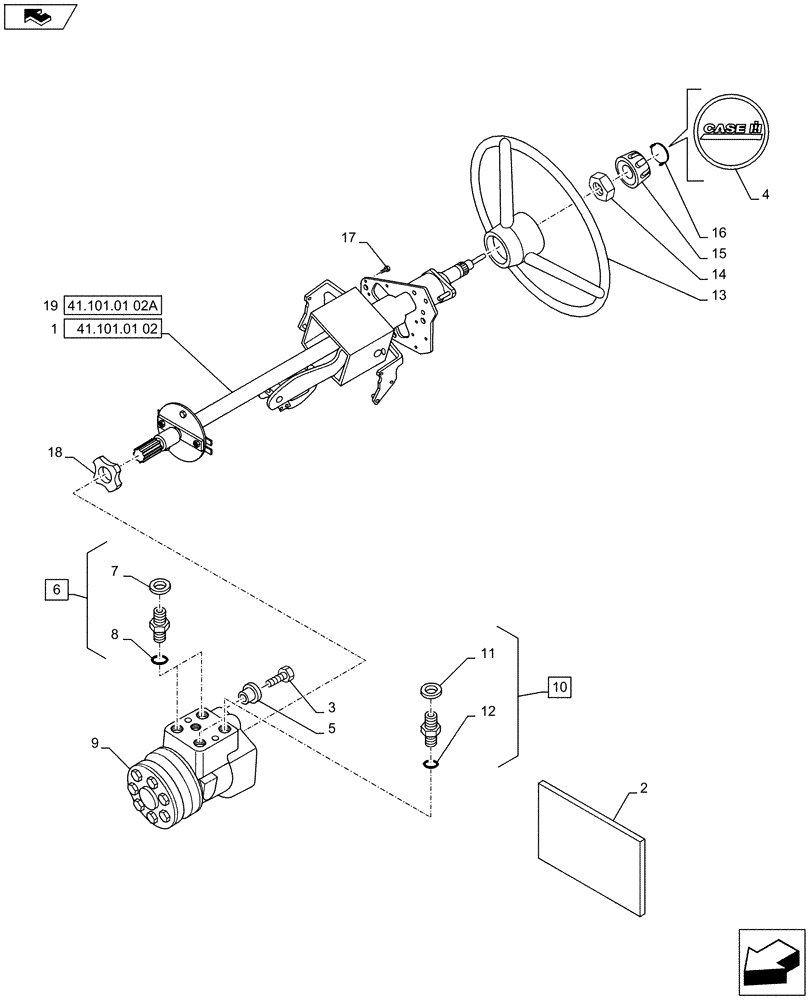

Схема запчастей Case IH PUMA 160 - (41.101.01[01]) - STANDARD STEERING - STEERING COLUMN (41) - STEERING
13
15
19
3
18
12
1
home
17
16
6
10
11
14
2
5
8
9
7
4
41.101.01 02
41.101.01 02a

Артикул

Название

Примечание

Количество

1

84255779

STEERING COLUMN,Tilting, Telescoping

ASSY, Serial Range: -C9023

1шт.

2

82004409

DECAL

Hole Blanking

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

86401707

EMBLEM

1шт.

5

82009429

ISOLATOR

4шт.

6

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Incl 7, 8

2шт.

7

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

8

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

84198317

HYDRAULIC STEERING

Motor, with Cl3 Front Axle, Puma 130, 145, Serial Range: -C7113

1шт.

9

84352989

STEERING VALVE

Motor, with Cl3 Front Axle, Puma 130, 145, Start Serial: D7113

1шт.

9

84198243

HYDRAULIC STEERING

Motor, with CL4 Front Axle, Puma 160. CL4 Front Axle VAR 338631 for Puma 130, 145, Serial Range: -C7113

1шт.

9

84198243R

REMAN-STEERING VALVE

PUMA 130, PUMA 145, PUMA 160, All TRACTOR, CVT Motor, with CL4 Front Axle, Serial Range: -C7113 (12/10-)

1шт.

9

84198243C

CORE-STEERING VALVE

Return Number

1шт.

9

84140275

STEERING VALVE

Motor, with CL4 Front Axle, Puma 160. CL4 Front Axle VAR 338631 for Puma 130, 145, Start Serial: D7113

1шт.

10

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

Incl 11, 12

2шт.

11

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

12

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

9821708

STEERING WHEEL

, Serial Range: -C9023

1шт.

13

84574824

STEERING WHEEL

, Start Serial: D9023

1шт.

14

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

15

87302160

KNOB

, Serial Range: -C9023

1шт.

15

84575428

KNOB

, Start Serial: D9023

1шт.

16

87302798

CAP,54mm OD, Black

1шт.

17

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

1шт.

18

81873344

RUBBER INSULATOR

1шт.

19

47383940

STEERING COLUMN,Tilting, Telescoping

ASSY, Start Serial: D9023

1шт.

Выбрано товаров: 26
