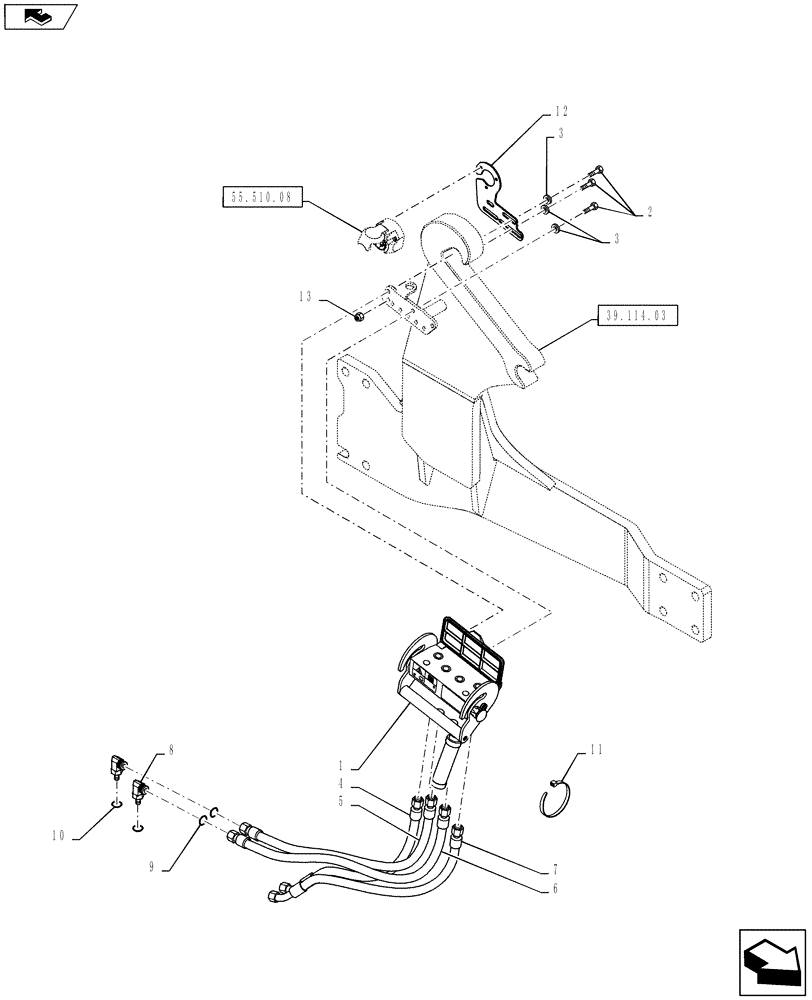

Запчасти Case IH PUMA 160 (35.724.02) - VAR - 334821, 743702 - EUROPEAN LOADER READY FOR FRONT HPL - FAST-FITTING CONNECTION AND PIPES (35) - HYDRAULIC SYSTEMS

1

87733579

COUPLING

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

3

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

4

84382629

HOSE

Loader Lower

1шт.

5

84382633

HOSE

Loader Raise

1шт.

6

84382635

HOSE

Loader Crowd

1шт.

7

84382637

HOSE

Loader Tip

1шт.

8

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

2шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

11

81844383

CABLE TIE

CABLE STRAP

1шт.

12

87736290

BRACKET

1шт.

13

86528579

NUT,M8 x 1.25

1шт.
