Запчасти Case IH PUMA 160 (35.300.02) - HYDRAULIC OIL FILTER - CHARGE (35) - HYDRAULIC SYSTEMS

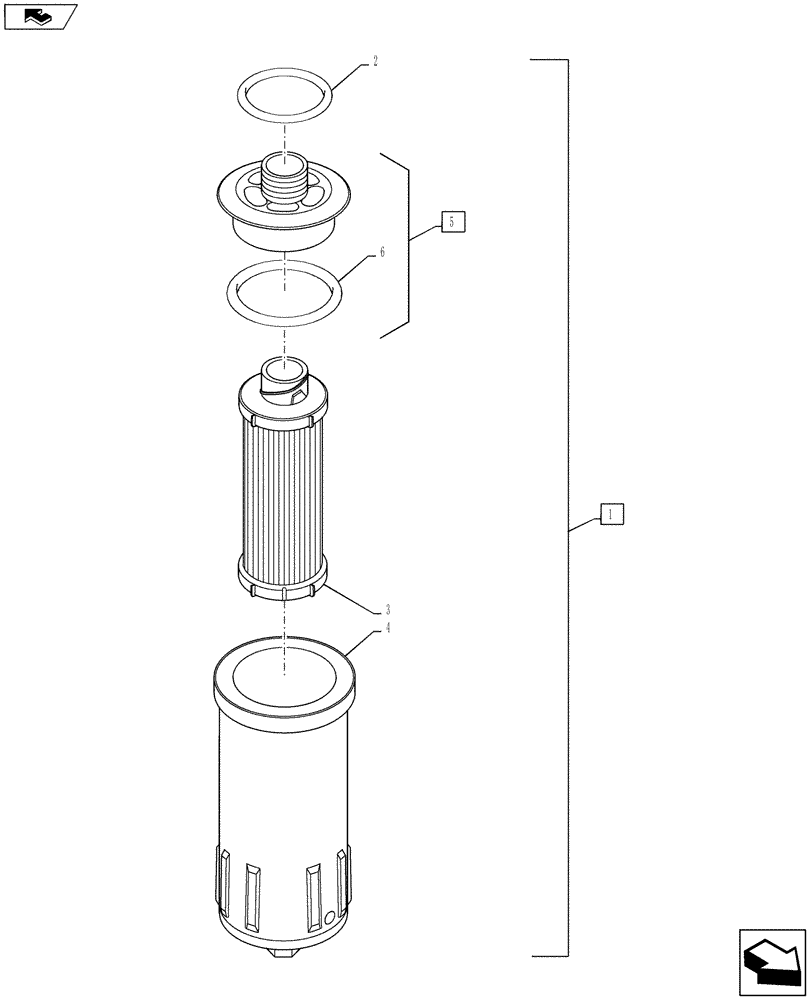

Схема запчастей Case IH PUMA 160 - (35.300.02) - HYDRAULIC OIL FILTER - CHARGE (35) - HYDRAULIC SYSTEMS
2
4
home
1
3
5
6

Артикул

Название

Примечание

Количество

1

84341286

HYDRAULIC OIL FILTER,289.5mm L

1шт.

AFTER THE FIRST 50 HOURS ORDER THESE 3 ITEMS : Longer Filter Housing (PN 84417137) + Higher Capacity Element (PN 84417139) + O-Ring (PN 84550359); FOR THE NEXT REPLACEMENTS ORDER ONLY Higher Capacity Element (PN 84417139) + O-Ring (PN 84550359)”

1шт.

2

84417142

O-RING,3.53mm Thk x 78.97mm ID

1шт.

3

84417139

ELEMENT,267.5mm L, 11 Micron

1шт.

4

84417137

FILTER BOWL

1шт.

5

84474899

ADAPTER

Incl 6

1шт.

6

84550359

O-RING,84.50mm ID x 3.00mm

1шт.

Выбрано товаров: 7
