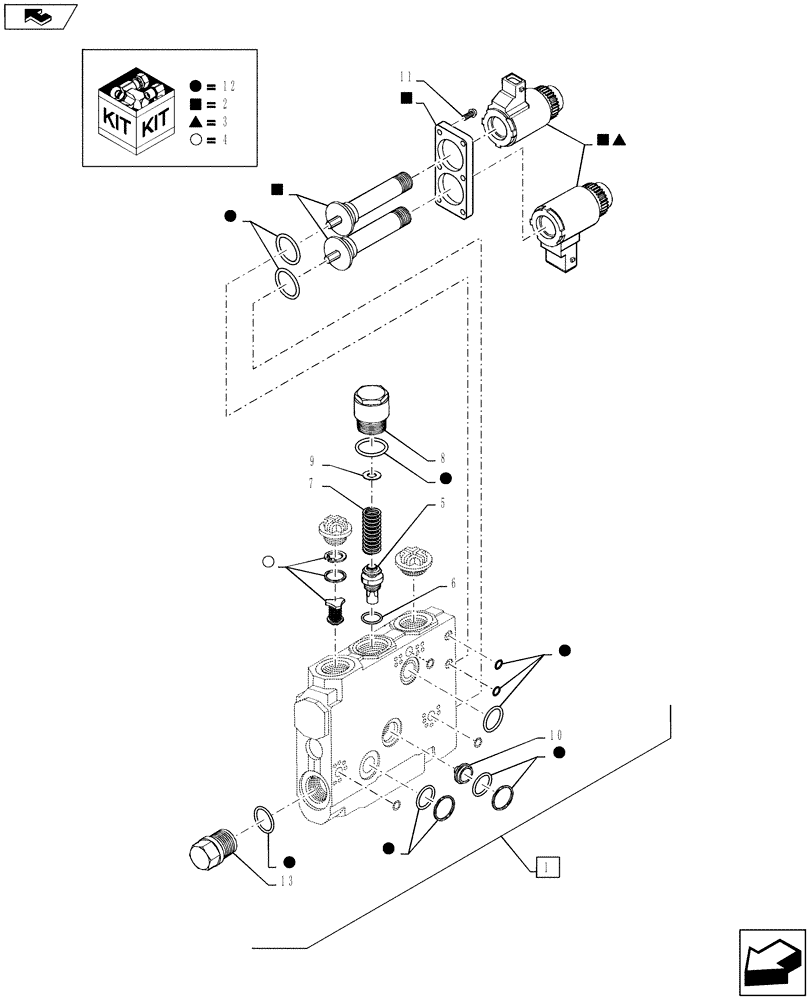

Запчасти Case IH PUMA 160 (35.204.25) - VALVE SECTION - ELECTRONIC DRAFT CONTROL (35) - HYDRAULIC SYSTEMS

1

84175671

VALVE SECTION

Incl 2 - 13

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130 CVT, PUMA 145 CVT, PUMA 160 CVT all (12/10-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

2

5190768

COIL ASSY.

2шт.

3

47129414

SOLENOID,3.35A

Incl 2

1шт.

4

84232107

REPAIR KIT

1шт.

5

47129415

INSERT

Valve

1шт.

6

87531495

O-RING,12.00mm ID x 1.75mm

1шт.

7

47129411

SPRING

1шт.

8

47129410

PLUG,Hex, 29.2mm OD

1шт.

9

47129416

SHIM,0.80mm T

1шт.

9

47129406

SHIM,0.30mm T

1шт.

9

47129407

SHIM,0.40mm T

1шт.

10

84127100

SHUT-OFF VALVE

1шт.

11

47129409

SET SCREW,Oval Head

6шт.

12

47129413

SEAL KIT

1шт.

13

87531487

PLUG

1шт.
