(35.204.16[01]) - VAR - 743733, 332862, 332855 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND

Запчасти Case IH PUMA 160 (35.204.16[01]) - VAR - 743733, 332862, 332855 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

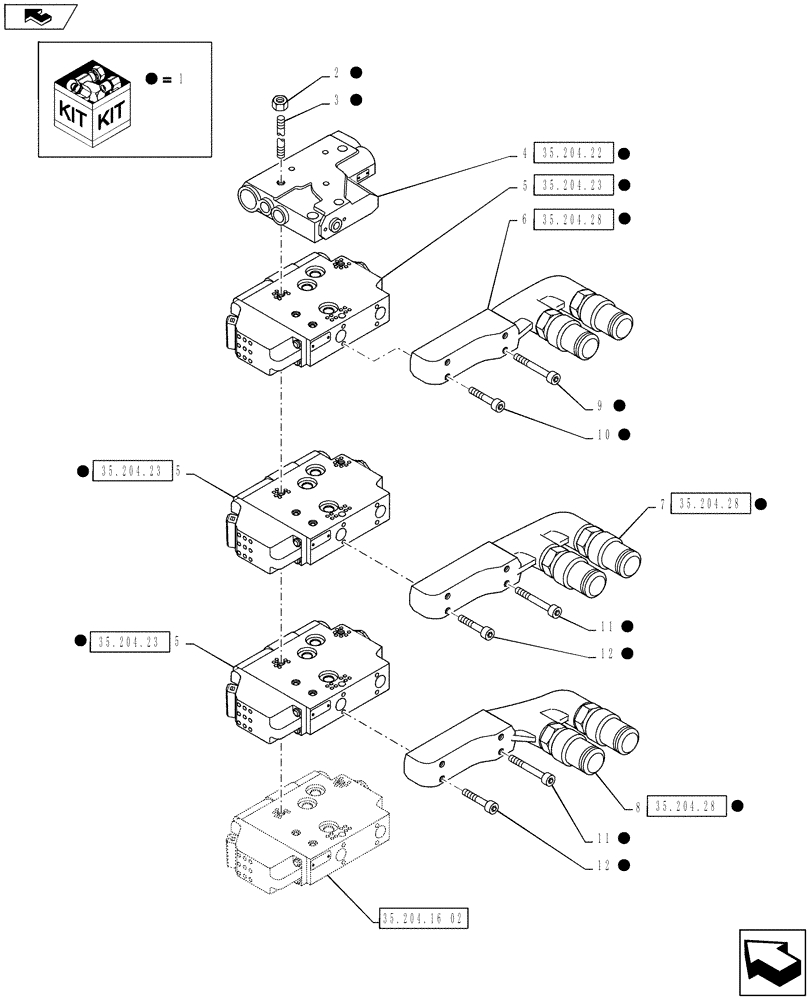

Схема запчастей Case IH PUMA 160 - (35.204.16[01]) - VAR - 743733, 332862, 332855 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS
1
1
1
1
1
9
1
1
1
5
7
11
1
1
8
5
1
3
1
2
1
5
1
10
1
12
1
home
35.204.16 02
35.204.28
35.204.23
35.204.23
35.204.28
35.204.28
35.204.23
35.204.22
4
1
11
12
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84230146

CONTROL VALVE

Incl 2 - 12 and Figure 35.204.16 (02)

1шт.

2

5195169

NUT,M8

3шт.

3

84151304

THREADED TIE-ROD

TRUSS ROD

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

84230181

HYD VALVE SECTION

3шт.

6

87381965

QUICK MALE COUPLING

1шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

10

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

4шт.
