(35.160.05[01]) - VAR - 331926 - FRONT HPL - TUBES FROM ELECTROHYDRAULIC REMOTE VALVES

Запчасти Case IH PUMA 160 (35.160.05[01]) - VAR - 331926 - FRONT HPL - TUBES FROM ELECTROHYDRAULIC REMOTE VALVES (35) - HYDRAULIC SYSTEMS

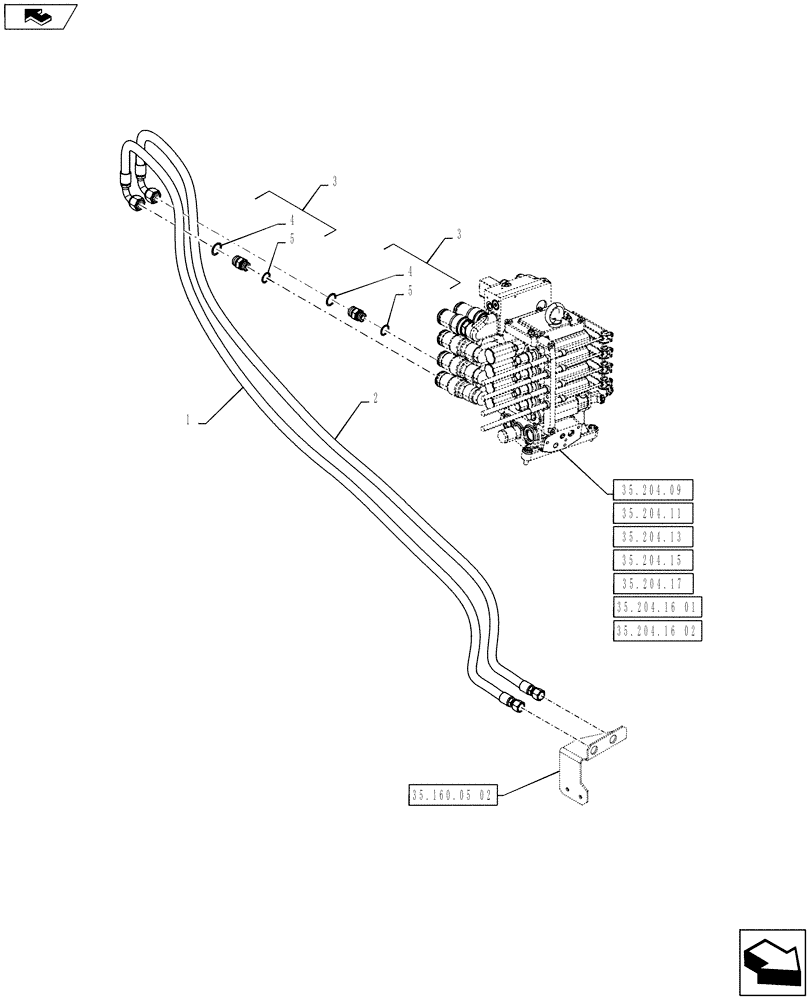

Схема запчастей Case IH PUMA 160 - (35.160.05[01]) - VAR - 331926 - FRONT HPL - TUBES FROM ELECTROHYDRAULIC REMOTE VALVES (35) - HYDRAULIC SYSTEMS
2
4
5
5
35.204.13
35.204.11
35.204.09
home
35.160.05 02
35.204.16 02
35.204.17
35.204.16 01
35.204.15
1
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84152532

HYDRAULIC HOSE,2260.00mm

Raise

1шт.

2

84159105

HYDRAULIC HOSE,2260.00mm

Lower

1шт.

3

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

2шт.

4

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

Выбрано товаров: 5
